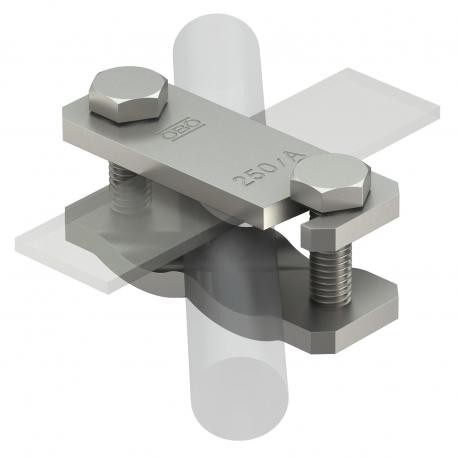

250 A-VA 5313023 OBO BETTERMANN Diagonal clamp , Stainless steel, grade 304, VA, 1.4301
250 A-VA
5313023
OBO BETTERMANN
10 Pcs.
Connectors > Connector for lightning protection
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 250 A-VA is a diagonal clamp manufactured by Obo Bettermann for securing conductors in lightning protection and grounding installations.
These components provide mechanical stability and electrical continuity where different conductors intersect within industrial and commercial earthing networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 1,1873 kg CO2e / 1 Piece
- Dimension: 88x30x45
- Dimension A: 30 mm
- Dimension B: 88 mm
- Dimension L: 40 mm
- Fit: Rd 6-22/max. FL50 mm
- Flat conductor width, conductor 2, max.: 50
- Intermediate plate: no
- Lightning current carrying capacity: H/100 kA
- Material: Stainless steel 1.4301
- Round conductor diameter, conductor 1, max.: 22 mm
- Round conductor diameter, conductor 1, min.: 6 mm
- Suitable for connection: Miscellaneous
- Type of connector: Connectors
- Type of fastening screw: Hexagonal bolt
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,1873 kg CO2e / 1 Piece |
|---|---|
| Dimension | 88x30x45 |
| Dimension A | 30 mm |
| Dimension B | 88 mm |
| Dimension L | 40 mm |
| Fit | Rd 6-22/max. FL50 mm |
| Flat conductor width, conductor 2, max. | 50 |
| Intermediate plate | no |
| Lightning current carrying capacity | H/100 kA |
|---|---|
| Material | Stainless steel 1.4301 |
| Round conductor diameter, conductor 1, max. | 22 mm |
| Round conductor diameter, conductor 1, min. | 6 mm |
| Suitable for connection | Miscellaneous |
| Type of connector | Connectors |
| Type of fastening screw | Hexagonal bolt |
