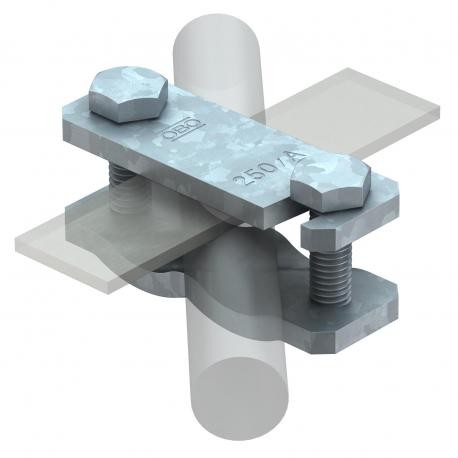

OBO BETTERMANN 250 A-FT 250 A-FT 5313015 OBO BETTERMANN Diagonal clamp , Hot-dip galvanised, DIN EN ISO 1461, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

250 A-FT 5313015 OBO BETTERMANN Diagonal clamp , Hot-dip galvanised, DIN EN ISO 1461, Steel, St

250 A-FT

5313015

OBO BETTERMANN

25 Pcs.

Diagonal clamp , Hot-dip galvanised, DIN EN ISO 1461, Steel, St Diagonal terminal 250 A-FT, 88x30x45 Steel, St, Hot-dip galvanized, DIN EN ISO 1461 Diagonal terminal for flat conductor and round FT conductor. • For reinforcement steels of Ø 6-22 mm and 50 x 4 flat conductors • Mounted with M10 x 40 screws • Version ...-AS with M10 x 30 screws • Easy installation by means of an elongated open hole

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Diagonal clamp devices such as the Obo Bettermann 250 A-FT secure angular conductor runs and fastening elements within comprehensive lightning protection layouts. These structural hardware pieces anchor network components firmly against external mechanical forces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Diameter round conductor 1 (EF012523): 6 mm
  • Width flat conductor 2 (EF012526): 0 mm
  • Material (EF002169): Steel
  • Surface protection (EF000139): Hot dip galvanized
  • Type of fastening screws (EF000609): Hexagon screw

More info

▲
• For reinforced steels Ø 6-22 mm and flat conductor 50 x 4
• Installed with screws M10 x 40
• AS version with screws M10 x 20
• Simple installation with open slot

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
