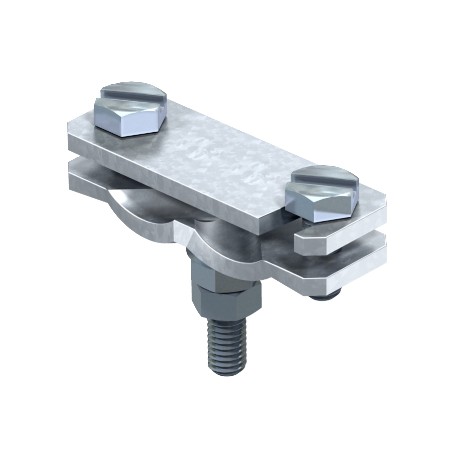

250 A-BO 5313066 OBO BETTERMANN Diagonal clamp with flange-welded bolt, Hot-dip galvanised, DIN 267, Teil 10..
250 A-BO
5313066
OBO BETTERMANN
25 Pcs.
Connectors > Connector for lightning protection
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This diagonal clamp with flange-welded bolt from Obo Bettermann, designated as 250 A-BO, anchors grounding conductors securely to structural steel beams and supports. Diagonal clamps allow technicians to route lightning protection lines across industrial frameworks without drilling into structural members.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,5571 kg CO2e / 1 Piece
- Dimension: 88x30x70
- Dimension L: 25 mm
- Fit: Rd 6-22/max. FL50 mm
- Flat conductor width, conductor 2, max.: 5
- Lightning current carrying capacity: H/100 kA
- Material: Steel
- Round conductor diameter, conductor 1, max.: 22 mm
- Round conductor diameter, conductor 1, min.: 6 mm
- Suitable for connection: Miscellaneous
- Surface: Hot galvanized
- Type of connector: Connectors
- Type of fastening screw: Hexagonal bolt
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,5571 kg CO2e / 1 Piece |
|---|---|
| Dimension | 88x30x70 |
| Dimension L | 25 mm |
| Fit | Rd 6-22/max. FL50 mm |
| Flat conductor width, conductor 2, max. | 5 |
| Lightning current carrying capacity | H/100 kA |
| Material | Steel |
| Round conductor diameter, conductor 1, max. | 22 mm |
|---|---|
| Round conductor diameter, conductor 1, min. | 6 mm |
| Suitable for connection | Miscellaneous |
| Surface | Hot galvanized |
| Type of connector | Connectors |
| Type of fastening screw | Hexagonal bolt |
