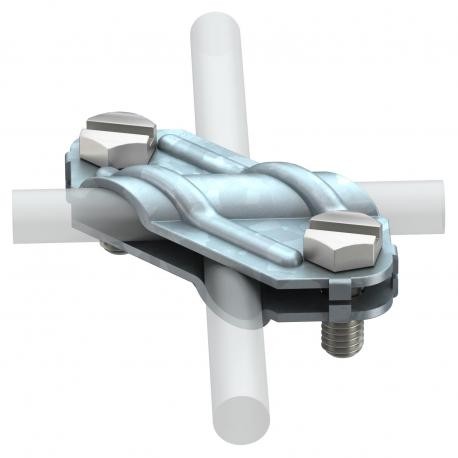

OBO BETTERMANN 250 250 5312906 OBO BETTERMANN Cross-connectors , Hot-dip galvanised, DIN EN ISO 1461, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

250 5312906 OBO BETTERMANN Cross-connectors , Hot-dip galvanised, DIN EN ISO 1461, Steel, St

250

5312906

OBO BETTERMANN

25 Pcs.

Cross-connectors , Hot-dip galvanised, DIN EN ISO 1461, Steel, St Cross-connector for flat conductors and round conductors FT. • Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)• Fit: Rd 8-10 x Rd 8-10• Fit: Rd 8-10 x FL 30• Fit: FL 30 x FL 30• Mounted with 2 hexagonal bolts M8 x 20 (F)

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Cross-connectors like this Obo Bettermann 250 unit are deployed in electrical installations to create secure intersection points between flat and round conductors in grounding grids. They provide the necessary structural firmness to distribute electrical surges safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,2821 kg CO2e / 1 Piece
  • Dimension: 8-10mm
  • Fit: Rd 8-10/FL30 mm
  • Intermediate plate: no
  • Lightning current carrying capacity: N/50 kA
  • Material: Steel
  • Short-circuit current (50 HZ)(1 s;≤300°C): 5,6 kA
  • Suitable for connection: Round conductor Rd 8-10 / flat conductor Fl 30
  • Surface: Hot-dip galvanised
  • Type of connector: Cross-connectors
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,2821 kg CO2e / 1 Piece
Dimension8-10mm
FitRd 8-10/FL30 mm
Intermediate plateno
Lightning current carrying capacityN/50 kA
MaterialSteel
Short-circuit current (50 HZ)(1 s;≤300°C)5,6 kA
Suitable for connectionRound conductor Rd 8-10 / flat conductor Fl 30
SurfaceHot-dip galvanised
Type of connectorCross-connectors
Type of fastening screwHexagonal bolt
