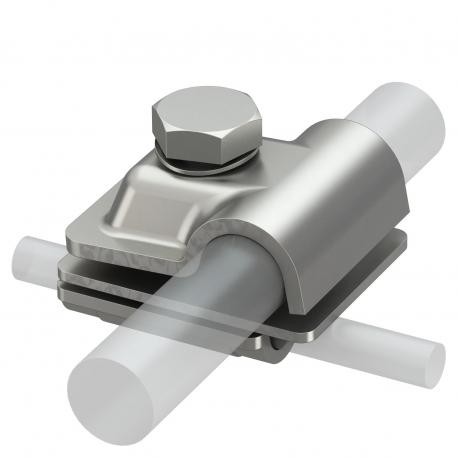

OBO BETTERMANN 249 8-10X16 VA 249 8-10X16 VA 5311590 OBO BETTERMANN Quick connector Vario, 8-10mm/16mm, Stainless steel, grade 304, VA, 1... View larger
Images are for illustrative purposes only. Please refer to data sheet for details

249 8-10X16 VA 5311590 OBO BETTERMANN Quick connector Vario, 8-10mm/16mm, Stainless steel, grade 304, VA, 1...

249 8-10X16 VA

5311590

OBO BETTERMANN

10 Pcs.

Quick connector Vario, 8-10mm/16mm, Stainless steel, grade 304, VA, 1.4301 Vario quick connector Rd 8-10x16. • For T, cross-over and parallel connections with adapter plates• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel• With sprung washer to DIN 137• Corresponds to the requirements of VDE 0185-305 (IEC 62305)

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A quick connector Vario is an adaptable multipurpose clamping assembly employed in structural lightning protection to bridge different conductor profiles securely. This hardware forms firm electrical contact points across diverse conductive networks to maintain safety compliance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,9098 kg CO2e / 1 Piece
  • Dimension: 50x40mm
  • Dimension A: 40 mm
  • Fit: 8-10x16 mm
  • Intermediate plate: no
  • Length: 50 mm
  • Lightning current carrying capacity: H/100 kA
  • Material: Stainless steel 1.4301
  • Round conductor diameter, conductor 1, max.: 10 mm
  • Round conductor diameter, conductor 1, min.: 8 mm
  • Round conductor diameter, conductor 2, max.: 16 mm
  • Short-circuit current (50 HZ)(1 s;≤300°C): 7,9 kA
  • Suitable for connection: Round conductor Rd 8-10 / Rd 16
  • Type of connector: Multipurpose connection clamp
  • Type of fastening screw: Hexagonal bolt
  • Width: 40 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,9098 kg CO2e / 1 Piece
Dimension50x40mm
Dimension A40 mm
Fit8-10x16 mm
Intermediate plateno
Length50 mm
Lightning current carrying capacityH/100 kA
MaterialStainless steel 1.4301
Round conductor diameter, conductor 1, max.10 mm
Round conductor diameter, conductor 1, min.8 mm
Round conductor diameter, conductor 2, max.16 mm
Short-circuit current (50 HZ)(1 s;≤300°C)7,9 kA
Suitable for connectionRound conductor Rd 8-10 / Rd 16
Type of connectorMultipurpose connection clamp
Type of fastening screwHexagonal bolt
Width40 mm
