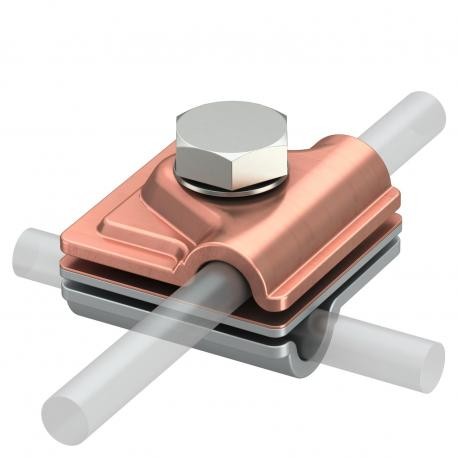

OBO BETTERMANN 249 8-10 ZV 249 8-10 ZV 5311535 OBO BETTERMANN Quick connector vario, Copper, Cu View larger
Images are for illustrative purposes only. Please refer to data sheet for details

249 8-10 ZV 5311535 OBO BETTERMANN Quick connector vario, Copper, Cu

249 8-10 ZV

5311535

OBO BETTERMANN

10 Pcs.

Quick connector vario, Copper, Cu Variable bi-metal quick connector. • Intermediate plate, copper/aluminium, top section copper and aluminium• For T, cross and parallel connectors• Quick installation using hexagonal bolt M10 x 30, high-grade stainless steel• With spring washer according to DIN 137• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A quick connector vario, designated as part number 249 8-10 ZV by Obo Bettermann, is utilized to establish secure bonding connections in lightning protection layouts.

Such multipurpose hardware facilitates the interconnection of various metallic conductors to ensure low-resistance paths for fault currents and atmospheric discharges.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,941 kg CO2e / 1 Piece
  • Dimension: 44x44mm
  • Dimension A: 44 mm
  • Fit: Rd 8-10 mm
  • Intermediate plate: yes
  • Lightning current carrying capacity: H/100 kA
  • Material: Copper
  • Material lower part: Cu
  • Material upper part: Al
  • Round conductor diameter, conductor 1, max.: 10 mm
  • Round conductor diameter, conductor 1, min.: 8 mm
  • Round conductor diameter, conductor 2, max.: 10 mm
  • Round conductor diameter, conductor 2, min.: 8 mm
  • Suitable for connection: Round conductor Rd 8–10 / Rd 8–10
  • Type of connector: Multipurpose connection clamp
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,941 kg CO2e / 1 Piece
Dimension44x44mm
Dimension A44 mm
FitRd 8-10 mm
Intermediate plateyes
Lightning current carrying capacityH/100 kA
MaterialCopper
Material lower partCu
Material upper partAl
Round conductor diameter, conductor 1, max.10 mm
Round conductor diameter, conductor 1, min.8 mm
Round conductor diameter, conductor 2, max.10 mm
Round conductor diameter, conductor 2, min.8 mm
Suitable for connectionRound conductor Rd 8–10 / Rd 8–10
Type of connectorMultipurpose connection clamp
Type of fastening screwHexagonal bolt
