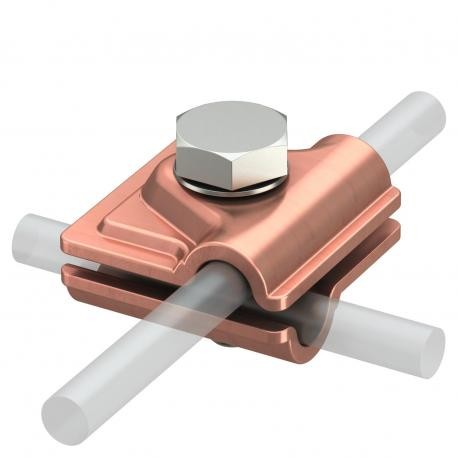

OBO BETTERMANN 249 8-10 CU 249 8-10 CU 5311527 OBO BETTERMANN Quick connector vario, Copper, Cu View larger
Images are for illustrative purposes only. Please refer to data sheet for details

249 8-10 CU 5311527 OBO BETTERMANN Quick connector vario, Copper, Cu

249 8-10 CU

5311527

OBO BETTERMANN

10 Pcs.

Quick connector vario, Copper, Cu Vario quick connector Cu. • For T, cross and parallel connectors• Quick installation using hexagonal bolt M10 x 30, high-grade stainless steel• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for fast field assembly, the Obo Bettermann 249 8-10 CU quick connector vario joins intersecting copper conductors in lightning protection networks. Vario quick connectors provide versatile clamping geometry to accommodate multiple routing configurations during on-site installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,5276 kg CO2e / 1 Piece
  • Dimension: 40x40mm
  • Dimension A: 40 mm
  • Fit: Rd 8-10 mm
  • Intermediate plate: no
  • Lightning current carrying capacity: H/100 kA
  • Material: Copper
  • Round conductor diameter, conductor 1, max.: 10 mm
  • Round conductor diameter, conductor 1, min.: 8 mm
  • Round conductor diameter, conductor 2, max.: 10 mm
  • Round conductor diameter, conductor 2, min.: 8 mm
  • Suitable for connection: Round conductor Rd 8–10 / Rd 8–10
  • Type of connector: Multipurpose connection clamp
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,5276 kg CO2e / 1 Piece
Dimension40x40mm
Dimension A40 mm
FitRd 8-10 mm
Intermediate plateno
Lightning current carrying capacityH/100 kA
MaterialCopper
Round conductor diameter, conductor 1, max.10 mm
Round conductor diameter, conductor 1, min.8 mm
Round conductor diameter, conductor 2, max.10 mm
Round conductor diameter, conductor 2, min.8 mm
Suitable for connectionRound conductor Rd 8–10 / Rd 8–10
Type of connectorMultipurpose connection clamp
Type of fastening screwHexagonal bolt
