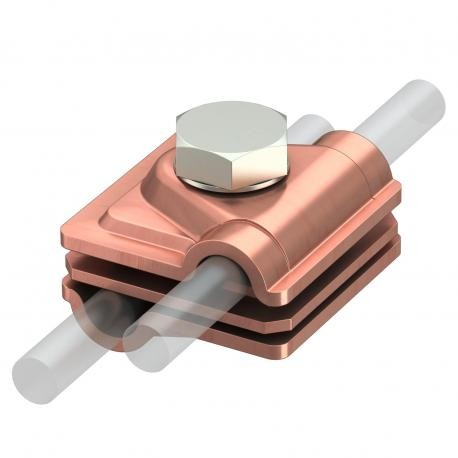

OBO BETTERMANN 249 6-10 CU 249 6-10 CU 5311417 OBO BETTERMANN Quick connector Vario, 6-10mm, Copper, Cu View larger
Images are for illustrative purposes only. Please refer to data sheet for details

249 6-10 CU 5311417 OBO BETTERMANN Quick connector Vario, 6-10mm, Copper, Cu

249 6-10 CU

5311417

OBO BETTERMANN

10 Pcs.

Quick connector Vario, 6-10mm, Copper, Cu Variable quick connector Rd 6-8/8-10 mm Cu. • For T, cross-over and parallel connections with adapter plates• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel A2• With sprung washer to DIN 137• Corresponds to the requirements of VDE 0185-305 (IEC 62305)

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Featuring a versatile clamping design, the Obo Bettermann 249 6-10 CU quick connector vario joins copper conductors of varying diameters in lightning protection networks. Multipurpose connection clamps simplify field installation by accommodating multiple wire gauges within a single hardware platform.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,6499 kg CO2e / 1 Piece
  • Dimension: 40x40mm
  • Dimension A: 40 mm
  • Fit: RD 6-8 / 8-10 mm
  • Intermediate plate: yes
  • Lightning current carrying capacity: H/100 kA
  • Material: Copper
  • Round conductor diameter, conductor 1, max.: 8 mm
  • Round conductor diameter, conductor 1, min.: 6 mm
  • Round conductor diameter, conductor 2, max.: 10 mm
  • Round conductor diameter, conductor 2, min.: 8 mm
  • Suitable for connection: Round conductor Rd 8–10 / Rd 8–10
  • Type of connector: Multipurpose connection clamp
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,6499 kg CO2e / 1 Piece
Dimension40x40mm
Dimension A40 mm
FitRD 6-8 / 8-10 mm
Intermediate plateyes
Lightning current carrying capacityH/100 kA
MaterialCopper
Round conductor diameter, conductor 1, max.8 mm
Round conductor diameter, conductor 1, min.6 mm
Round conductor diameter, conductor 2, max.10 mm
Round conductor diameter, conductor 2, min.8 mm
Suitable for connectionRound conductor Rd 8–10 / Rd 8–10
Type of connectorMultipurpose connection clamp
Type of fastening screwHexagonal bolt
