OBO BETTERMANN
>
TBS Transient and lightning protection systems - OBO BETTERMANN
>
Surge , external
>
5329078
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

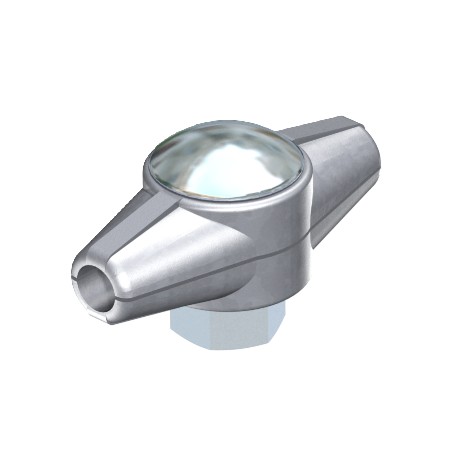

239 5329078 OBO BETTERMANN Connector , 8mm, Electrogalvanised, DIN 50961, Die-cast zinc, Zn
239
5329078
OBO BETTERMANN
20 Pcs.
Connector , 8mm, Electrogalvanised, DIN 50961, Die-cast zinc, Zn
Connector 239, 8mm Zinc die-casting, Zn, electro-zinc-plated, EN ISO 19598 / EN ISO 4042
Straight connector Rd 8 mm. • With truss-head bolt M10 x 30 and hexagonal nut M10• Complies with the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
Connectors > Connector for lightning protection
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,7638 kg CO2e / 1 Piece |
|---|---|
| Dimension | 8mm |
| Fit | Rd 8 mm |
| Flat conductor width, conductor 1, max. | 8 mm |
| Flat conductor width, conductor 1, min. | 8 mm |
| Intermediate plate | no |
| Lightning current carrying capacity | N/50 kA |
| Material | Die-cast zinc |
|---|---|
| Round conductor diameter, conductor 1, max. | 8 mm |
| Round conductor diameter, conductor 1, min. | 8 mm |
| Suitable for connection | Round conductor Rd 8 / Rd 8 |
| Surface | Electrogalvanized |
| Type of connector | Connectors |
| Type of fastening screw | Gutter bolt |
| Feature Name | Feature Value |
|---|---|
| Diameter round conductor 1 (EF012523) | 8 mm |
| Width flat conductor 1 (EF012524) | 8 mm |
| Material (EF002169) | Zinc die-cast |
| Surface protection (EF000139) | Galvanic/electrolytic zinc plated |
| Type of fastening screws (EF000609) | Flat round screw |
