OBO BETTERMANN
>
TBS Transient and lightning protection systems - OBO BETTERMANN
>
Surge , external
>
5328284
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

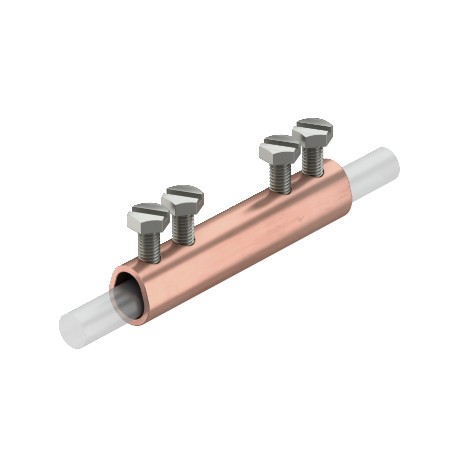

237 N CU 5328284 OBO BETTERMANN Connection sleeve , 8-10mm, Copper, Cu
237 N CU
5328284
OBO BETTERMANN
10 Pcs.
Connection sleeve , 8-10mm, Copper, Cu
Straight connector Rd 6−10 mm Cu. • With 4 hexagonal bolts M6 x 12• Complies with the requirements of VDE 0185-305-3 (IEC/EN 62305-3)
Connectors > Connector for lightning protection
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Clamping range, max. | 10 mm |
|---|---|
| Clamping range, min. | 6 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2667 kg CO2e / 1 Piece |
| Dimension | 6-10mm |
| Fit | Rd 6-10 mm |
| Intermediate plate | no |
| Lightning current carrying capacity | H/100 kA |
| Material | Copper |
| Round conductor diameter, conductor 1, max. | 10 mm |
|---|---|
| Round conductor diameter, conductor 1, min. | 6 mm |
| Round conductor diameter, conductor 2, max. | 10 mm |
| Round conductor diameter, conductor 2, min. | 6 mm |
| Suitable for connection | Miscellaneous |
| Type of connector | Connectors |
| Type of fastening screw | Hexagonal bolt |
