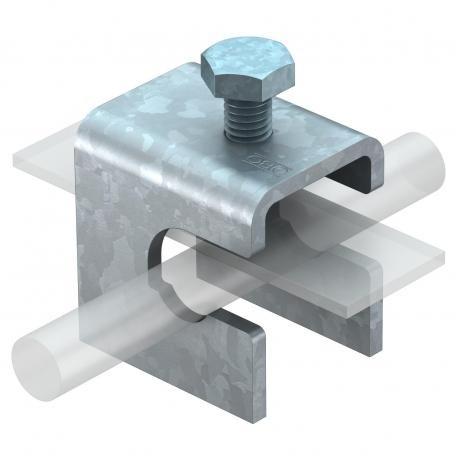

OBO BETTERMANN 1814 FT 1814 FT 5014468 OBO BETTERMANN Variable earthing terminal for reinforcement, Hot-dip galvanised, DIN EN ISO .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1814 FT 5014468 OBO BETTERMANN Variable earthing terminal for reinforcement, Hot-dip galvanised, DIN EN ISO ..

1814 FT

5014468

OBO BETTERMANN

25 Pcs.

Variable earthing terminal for reinforcement, Hot-dip galvanised, DIN EN ISO 1461, Steel, St VARIO earthing terminal for reinforced steels. • For reinforced steels with diameters 8-14 mm and FL 30 x 5• Simple mounting through open slot• Side suspension possible

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann 1814 FT variable earthing terminal is built for integration with concrete reinforcement mesh to establish a dependable grounding point in building foundations. Such terminals connect structural rebar to external earthing systems safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,5934 kg CO2e / 1 Piece
  • Dimension: 50x40x70
  • Fit: FL30x5 x Rd8-14 mm
  • Lightning current carrying capacity: N/50 kA
  • Material: Steel
  • Short-circuit current (50 HZ)(1 s;≤300°C): 7,3 kA
  • Suitable for connection: Miscellaneous
  • Surface: Hot-dip galvanised
  • Type of connector: Connectors
  • Type of fastening screw: Hexagonal bolt

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,5934 kg CO2e / 1 Piece
Dimension50x40x70
FitFL30x5 x Rd8-14 mm
Lightning current carrying capacityN/50 kA
MaterialSteel
Short-circuit current (50 HZ)(1 s;≤300°C)7,3 kA
Suitable for connectionMiscellaneous
SurfaceHot-dip galvanised
Type of connectorConnectors
Type of fastening screwHexagonal bolt
