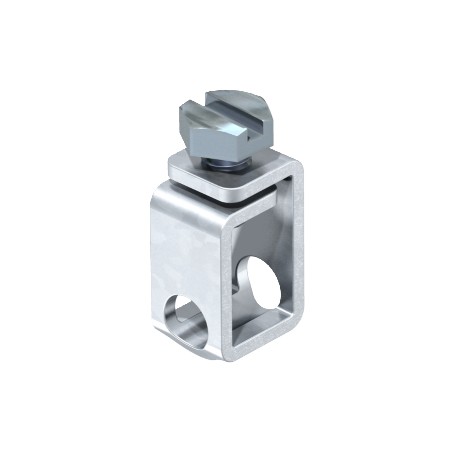

OBO BETTERMANN 1801 RK25 1801 RK25 5015758 OBO BETTERMANN Series terminal potential equalisation rail, 25mm², Electrogalvanised, DIN ..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

1801 RK25 5015758 OBO BETTERMANN Series terminal potential equalisation rail, 25mm², Electrogalvanised, DIN ..

Name: 1801 RK25 5015758 OBO BETTERMANN Series terminal potential equalisation rail, 25mm², Electrogalvanised, DIN ..
Brand: OBO BETTERMANN
SKU: 5015758

Reference: 1801 RK25

Code: 5015758

Manufacturer: OBO BETTERMANN

Units per package: 10 Pcs.

Description:

Series terminal potential equalisation rail, 25mm², Electrogalvanised, DIN 50961, Steel, St In-line terminal 1801 RK25 for equip bus bar. 25mm² Steel, St electro-galvanized, EN ISO 19598 / EN ISO 4042 Round cable terminal to 25 mm² for 1801 VDE. • For single or multi-wire cables 2.5–25 mm²• For fine-wire cables to 16 mm² (max. Ø 7 mm)• 1 division unit• Lightning current carrying capacity 100 kA (10/350)• Electrogalvanised steel• Tension clamp with screw lock against self-loosening (e.g. required in industry and in explosion-protected areas)

Categories:
Automation > Busbar terminal
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Obo Bettermann 1801 RK25 terminal potential equalisation rail functions as a centralized bonding point for grounding networks in complex automation setups. Potential equalisation rails guarantee proper grounding compliance across electrical housings and machinery frames.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

CO2 Footprint (GWP) Cradle-to-Gate: 0,0439 kg CO2e / 1 Piece
Connection options: 2.5−25 mm²
Dimension: 25mm²
Dividing unit TE (10 mm): 1
Material: Steel
Max. Conductor cross-section: 25 mm²
Suitable for ribbon conductor connection: no
Suitable for round cable connection: yes
Suitable for sector conductor connection: no
Surface: Electrogalvanized
Width: 12 mm

More info

▲

CO2 Footprint (GWP) Cradle-to-Gate	0,0439 kg CO2e / 1 Piece
Connection options	2.5−25 mm²
Dimension	25mm²
Dividing unit TE (10 mm)	1
Material	Steel
Max. Conductor cross-section	25 mm²

Suitable for busbar	Other
Suitable for ribbon conductor connection	no
Suitable for round cable connection	yes
Suitable for sector conductor connection	no
Surface	Electrogalvanized
Width	12 mm
