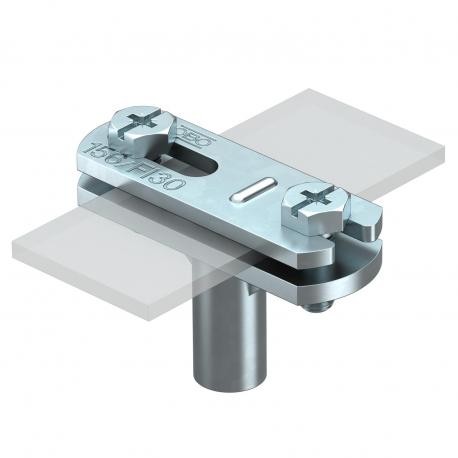

OBO BETTERMANN 168 FL30-M6 168 FL30-M6 5229464 OBO BETTERMANN Cable fixing device for flat conductors, 30mm, Galvanised, Die-cast zinc,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

168 FL30-M6 5229464 OBO BETTERMANN Cable fixing device for flat conductors, 30mm, Galvanised, Die-cast zinc,..

168 FL30-M6

5229464

OBO BETTERMANN

20 Pcs.

Cable fixing device for flat conductors, 30mm, Galvanised, Die-cast zinc, Zn Cable bracket for flat conductors. • For flat strap• With internal thread (G)• Mounting height 30 mm

Automation > Conductor holder for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann model 168 FL30-M6 is a cable fixing device for flat conductors engineered to anchor wide metallic strips securely within industrial grounding and earthing systems. It ensures stable fastening under demanding mechanical conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Cable dimensions: 30 x 4 mm flat
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,3078 kg CO2e / 1 Piece
  • Conductor fastening type: With screw clip
  • Dimension: 30mm
  • Dimension B: 56 mm
  • Dimension G: M6 mm
  • Fit: FL 30 mm
  • High voltage-resistant, insulated version: no
  • Holder fastening type: Drill hole with M-thread
  • Material: Die-cast zinc
  • Material of the base: Die-cast zinc
  • Material of the crossbar: Die-cast zinc
  • Material of the holder: Die-cast zinc
  • Surface: galvanised
  • Thread: M6
  • Thread metric: 6

More info

▲
Cable dimensions30 x 4 mm flat
CO2 Footprint (GWP) Cradle-to-Gate0,3078 kg CO2e / 1 Piece
Conductor fastening typeWith screw clip
Dimension30mm
Dimension B56 mm
Dimension GM6 mm
FitFL 30 mm
High voltage-resistant, insulated versionno
Holder fastening typeDrill hole with M-thread
MaterialDie-cast zinc
Material of the baseDie-cast zinc
Material of the crossbarDie-cast zinc
Material of the holderDie-cast zinc
Surfacegalvanised
ThreadM6
Thread metric6
Use in Ex areayes
