OBO BETTERMANN
>
TBS Transient and lightning protection systems - OBO BETTERMANN
>
Surge , external
>
5218810
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

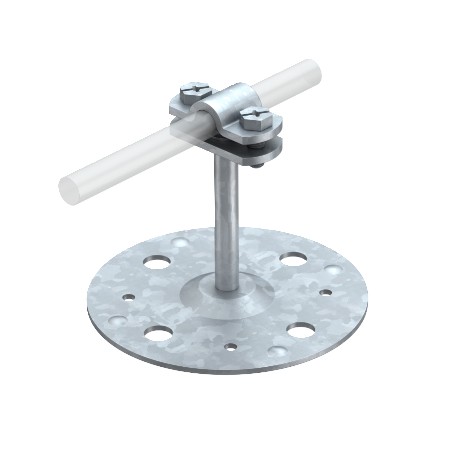

165 B 60 5218810 OBO BETTERMANN Roof conductor holder for flat conductors, 60mm, Hot-dip galvanised, DIN EN ..
165 B 60
5218810
OBO BETTERMANN
50 Pcs.
Roof conductor holder for flat conductors, 60mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Roof conductor holder, suitable for direct bonding. • With conductor holder and bottom section, hot-dip galvanised steel• Bottom section Ø 100 mm
Automation > Roof conductor holder for lightning protection
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Application | Flat roof |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5383 kg CO2e / 1 Piece |
| Conductor diameter, max. | 10 |
| Conductor diameter, min. | 8 |
| Conductor fastening type | With screw clip |
| Dimension | 60mm |
| Dimension H | 60 mm |
| Fit | Rd 8-10 mm |
|---|---|
| Length | 100 mm |
| Material | Steel |
| Mounting height | 60 mm |
| Mounting type | Adhesive |
| Surface | Hot-dip galvanised |
