OBO BETTERMANN
>
TBS Transient and lightning protection systems - OBO BETTERMANN
>
Surge , external
>
5215749
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

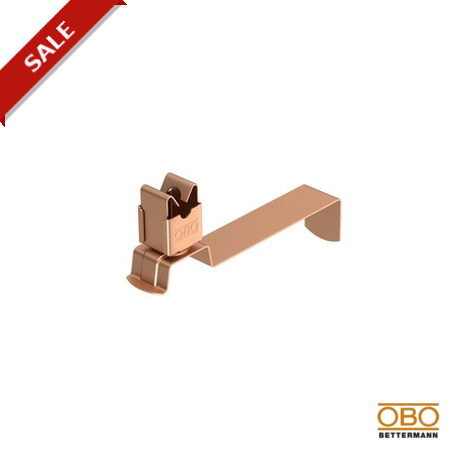

157 I-CU 5215749 OBO BETTERMANN Roof conductor holder , Copper, Cu
157 I-CU
5215749
OBO BETTERMANN
10 Pcs.
Roof conductor holder , Copper, Cu
Roof conductor holder for tiled roofs, angled, Rd 8, CU. • Conductor holder copper plated high-grade stainless steel (V2A)• Curved bottom strip for quick installation
Automation > Roof conductor holder for lightning protection
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Application | Roof surface |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1756 kg CO2e / 1 Piece |
| Conductor diameter, max. | 8 |
| Conductor diameter, min. | 8 |
| Conductor fastening type | With clip |
| Dimension | 8mm |
| Fit | Rd 8 mm |
|---|---|
| Length | 140 mm |
| Material | Copper |
| Mounting height | 26,5 mm |
| Mounting type | For suspension |
