OBO BETTERMANN
>
TBS Transient and lightning protection systems - OBO BETTERMANN
>
Surge , external
>
5215552
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

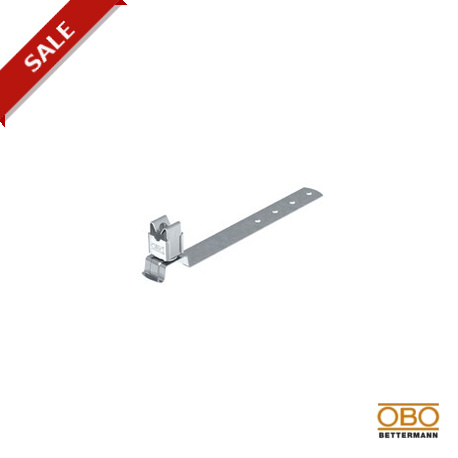

157 F-VA 230 5215552 OBO BETTERMANN Roof conductor holder , Stainless steel, grade 304, VA, 1.4301
157 F-VA 230
5215552
OBO BETTERMANN
20 Pcs.
Roof conductor holder , Stainless steel, grade 304, VA, 1.4301
Roof conductor holder for tiled roofs, Rd 8. • Conductor holder from stainless steel (V2A)• Including drill hole in bottom section for quick installation
Automation > Roof conductor holder for lightning protection
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Application | Roof surface |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3742 kg CO2e / 1 Piece |
| Conductor diameter, max. | 8 |
| Conductor diameter, min. | 8 |
| Conductor fastening type | With clip |
| Dimension | 8mm |
| Dimension L | 230 mm |
|---|---|
| Fit | Rd 8 mm |
| Length | 230 mm |
| Material | Stainless steel 1.4301 |
| Mounting height | 38,5 mm |
| Mounting type | Screw-on |
