OBO BETTERMANN
>
TBS Transient and lightning protection systems - OBO BETTERMANN
>
Surge , external
>
5202590
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

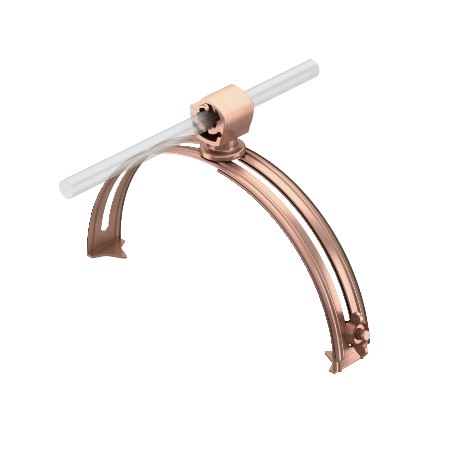

132 K-CU 5202590 OBO BETTERMANN Roof conductor holder for ridge tiles, Copper, Cu
132 K-CU
5202590
OBO BETTERMANN
10 Pcs.
Roof conductor holder for ridge tiles, Copper, Cu
Roof conductor holder for ridge tiles, 185−260 mm, Rd 8–10, CU. 132/..: Roof conductor holder for ridge tiles• Adjustable width from 185-260 mm• Bottom part made of non-rusting stainless steel (V2A) or of copper• Infinitely adjustable conductor holder• Conductor holder of polyamide• For round conductor Rd 8-10• Fast installation using wing screw
Automation > Roof conductor holder for lightning protection
Surge , external
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Application | Ridge |
|---|---|
| Clamping range D, max. | 260 mm |
| Clamping range D, min. | 185 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4121 kg CO2e / 1 Piece |
| Conductor diameter, max. | 10 |
| Conductor diameter, min. | 8 |
| Conductor fastening type | With clamp clip |
|---|---|
| Dimension | 8mm |
| Fit | Rd 8-10 mm |
| Material | Copper |
| Mounting height | 20 mm |
| Mounting type | Tensionable |
