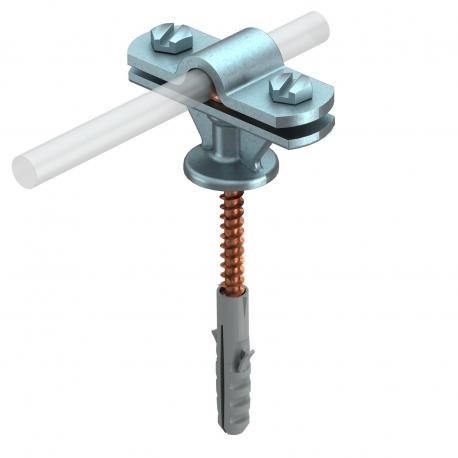

OBO BETTERMANN 113 B-Z-HD 113 B-Z-HD 5230322 OBO BETTERMANN Cable fixing device with wood screw, 8-10mm, Galvanised, Die-cast zinc, Zn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

113 B-Z-HD 5230322 OBO BETTERMANN Cable fixing device with wood screw, 8-10mm, Galvanised, Die-cast zinc, Zn

113 B-Z-HD

5230322

OBO BETTERMANN

100 Pcs.

Cable fixing device with wood screw, 8-10mm, Galvanised, Die-cast zinc, Zn Cable bracket Rd 8–10 mm with wood screw, plastic anchor. • With female thread M8 or through hole Ø 7 mm• Over-piece installed with 2 hexagonal bolts• Version HD with wood screws (5 x 60) and plastic dowels (8 x 40)

Automation > Conductor holder for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann model 113 B-Z-HD is a cable fixing device with wood screw that fastens cylindrical runs securely to walls, frames, and support channels. Such hardware is commonly deployed across building services to maintain organized routing paths.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Cable dimensions: 8−10 mm round
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,2787 kg CO2e / 1 Piece
  • Conductor fastening type: With screw clip
  • Dimension: 8-10mm
  • Fit: Rd 8-10 mm
  • High voltage-resistant, insulated version: no
  • Holder fastening type: Drill hole with M-thread
  • Material: Die-cast zinc
  • Material of the base: Die-cast zinc
  • Material of the crossbar: Die-cast zinc
  • Material of the holder: Die-cast zinc
  • Surface: galvanised
  • Thread metric: 8
  • Use in Ex area: yes

More info

▲
Cable dimensions8−10 mm round
CO2 Footprint (GWP) Cradle-to-Gate0,2787 kg CO2e / 1 Piece
Conductor fastening typeWith screw clip
Dimension8-10mm
FitRd 8-10 mm
High voltage-resistant, insulated versionno
Holder fastening typeDrill hole with M-thread
MaterialDie-cast zinc
Material of the baseDie-cast zinc
Material of the crossbarDie-cast zinc
Material of the holderDie-cast zinc
Surfacegalvanised
Thread metric8
Use in Ex areayes
