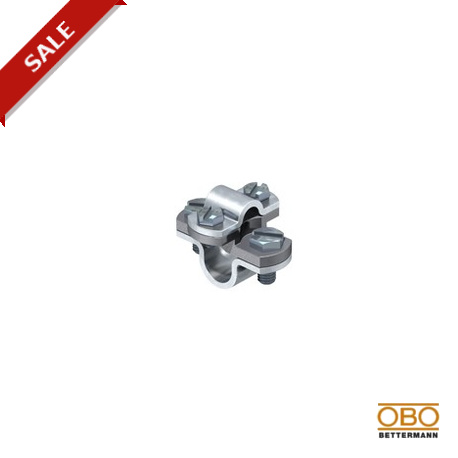

OBO BETTERMANN 108 B DIN 108 B DIN 5416566 OBO BETTERMANN Terminal , 8-10mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

108 B DIN 5416566 OBO BETTERMANN Terminal , 8-10mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St

108 B DIN

5416566

OBO BETTERMANN

10 Pcs.

Terminal , 8-10mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Rod clamp. • Rod clamp for connecting round conductors Rd 8−10 to connector rods Rd 16 • Mounted with 2 hexagonal bolts M8 x 16 and M6 x 12 • Adapter from malleable iron • Crossbar and bolts from hot dip galvanized steel

Connectors > Connector for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for robust structural earthing, the Obo Bettermann 108 B DIN terminal establishes reliable mechanical and electrical contact between heavy-gauge conductors. System integrators deploy these components within lightning protection loops to ensure continuous fault-current dissipation paths.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,2078 kg CO2e / 1 Piece
  • Dimension: 8-10mm
  • Fit: Rd 8-10/16 mm
  • Intermediate plate: no
  • Lightning current carrying capacity: N/50 kA
  • Material: cast steel
  • Suitable for connection: Round conductor Rd 8-10 / Rd 16
  • Surface: Hot-dip galvanised

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,2078 kg CO2e / 1 Piece
Dimension8-10mm
FitRd 8-10/16 mm
Intermediate plateno
Lightning current carrying capacityN/50 kA
Materialcast steel
Suitable for connectionRound conductor Rd 8-10 / Rd 16
SurfaceHot-dip galvanised
