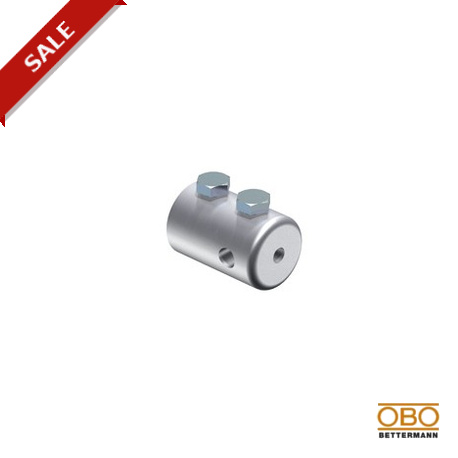

OBO BETTERMANN 101 IES 101 IES 5408393 OBO BETTERMANN End piece , Aluminium, Alu View larger
Images are for illustrative purposes only. Please refer to data sheet for details

101 IES 5408393 OBO BETTERMANN End piece , Aluminium, Alu

101 IES

5408393

OBO BETTERMANN

10 Pcs.

End piece , Aluminium, Alu End piece. • End piece for attaching round conductors Rd 8-10 and air-termination tips, type 101 ISP• With M10 internal thread, e.g. for mounting a Vario quick connector for fixed conductor routing at intersections• With M10 bolts

Automation > Air-termination equipment for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann 101 IES end piece provides a clean termination and mechanical finish for lightning protection rod assemblies. Component caps and end fittings are routinely employed on air-termination systems to seal profiles against moisture intrusion and maintain installation integrity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 2,505 kg CO2e / 1 Piece
  • Connection: Round conductor
  • Dimension: 20mm
  • Dimension d min.: 35 mm
  • Dimension d Ø: 20 mm
  • Dimension L: 60 mm
  • Length: 60 mm
  • Material: Aluminium

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate2,505 kg CO2e / 1 Piece
ConnectionRound conductor
Dimension20mm
Dimension d min.35 mm
Dimension d Ø20 mm
Dimension L60 mm
Length60 mm
MaterialAluminium
