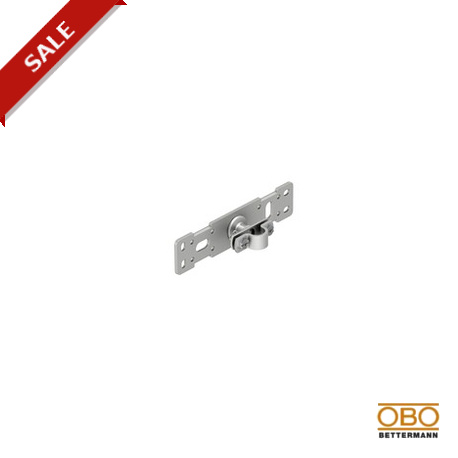

OBO BETTERMANN 101 BP-16 101 BP-16 5408984 OBO BETTERMANN Iso-Combi fastening plate, View larger
Images are for illustrative purposes only. Please refer to data sheet for details

101 BP-16 5408984 OBO BETTERMANN Iso-Combi fastening plate,

101 BP-16

5408984

OBO BETTERMANN

1 Pcs.

Iso-Combi fastening plate, Fastening plate. • To mount insulating rods on constructions or walls• Plate made of VA stainless steel• Holder and crosspiece for 16 and 20 mm rods and Rd 8−10 mm

Automation > Air-termination equipment for lightning protection
Surge , external

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann 101 BP-16 Iso-Combi fastening plate acts as a structural mounting base designed to support isolated lightning protection components and standoff rods. Fastening plates provide stable mechanical anchoring to walls or roof surfaces while isolating conductive elements from the building structure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 1,4345 kg CO2e / 1 Piece
  • Connection: Round conductor
  • Dimension: 175x40x42
  • Dimension B: 40 mm
  • Dimension d min.: 16 mm
  • Dimension H: 42 mm
  • Dimension L: 175 mm
  • Length: 175 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,4345 kg CO2e / 1 Piece
ConnectionRound conductor
Dimension175x40x42
Dimension B40 mm
Dimension d min.16 mm
Dimension H42 mm
Dimension L175 mm
Length175 mm
