OBO BETTERMANN
>
TBS Transient and lightning protection systems - OBO BETTERMANN
>
Surge , arrestor, type 3
>
5097615
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

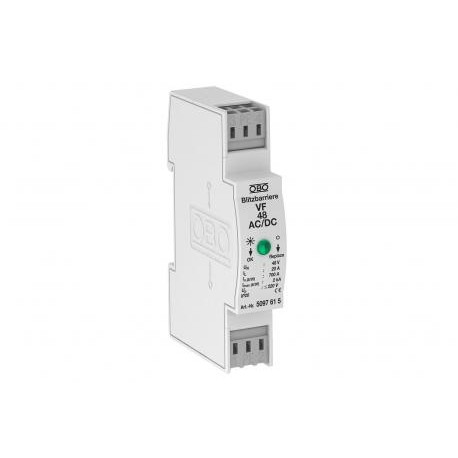

VF48-AC/DC 5097615 OBO BETTERMANN Lightning barrier for AC and DC, 48V AC,
VF48-AC/DC
5097615
OBO BETTERMANN
1 Pcs.
Lightning barrier for AC and DC, 48V AC,
MCR protection for 2-pole for power supply, 48 V. Surge protective device/fine protection type 3 to EN 61643-11 • Suitable for DC and AC voltage systems • With visual function display • With installation-friendly, screwless connection terminals• In a space-saving 17.5 mm grid • Y circuitApplication: Universal use on 35 mm DIN profile rail in every normal commercially available distributor housing.
Automation > Surge protection device for terminal equipment
Surge , arrestor, type 3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Blow-out | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4262 kg CO2e / 1 Piece |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 2,5 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 0,14 mm² |
| Dimension | 48V AC |
| Explosion-tested version | no |
| Installation type | DIN rail 35 mm |
| Lightning protection zone LPZ | 2→3 |
| Max. mains-side overcurrent protection | 20 |
| Maximum back-up fuse | 20 A |
| Maximum continuous voltage AC | 60 V |
| Maximum continuous voltage DC | 80 V |
| Maximum discharge current (8/20 μs) | 2 kA |
| Network form | Other |
| Nominal discharge current (8/20 µs) | 0,7 kA |
| Nominal voltage AC (50/60 Hz) | 48 V |
| OBO_Nominal load current (input/output terminal) | 20 A |
| Operating temperature, max. | 80 °C |
|---|---|
| Operating temperature, min. | -40 °C |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Pole number | 3 |
| Pole version | 2 |
| Protection level wire-earth | <1200 V |
| Protection level wire-wire | <220 V |
| Protection rating | IP20 |
| Remote signalling | no |
| Response time | <25 ns |
| Signalling on device | Visual |
| SPD to EN 61643-11 | Type 3 |
| SPD to IEC 61643-1 | Class III |
| Test class, type 3 | yes |
| Version for | 48 V version |
