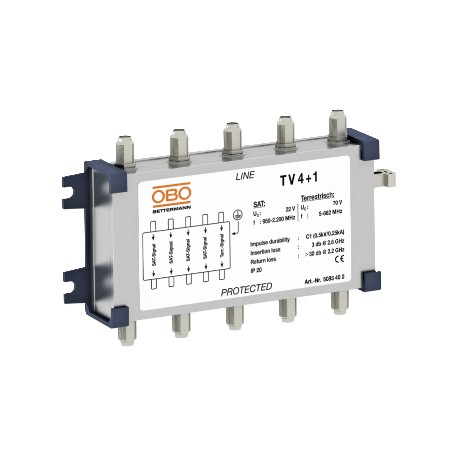

TV 4+1 5083400 OBO BETTERMANN Surge protection device for antenna systems,
TV 4+1
5083400
OBO BETTERMANN
1 Pcs.
Automation > Combined arrester for data networks/MCR-technology
Surge , arrestor, type 3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann surge protection device (part number TV 4+1) is specifically built to safeguard antenna systems and high-frequency communication pathways from atmospheric lightning strikes and induced voltage transients. Units in this category are typically installed at building entry points or near receiver equipment to protect sensitive RF hardware. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Arrestor monitoring: no
- Capacity (wire-earth): <500 pF
- Capacity (wire-wire): <500 pF
- CO2 Footprint (GWP) Cradle-to-Gate: 1,1222 kg CO2e / 1 Piece
- Cut-off frequency: 2800 MHz
- Dimension: 70V
- Earthing via:: Connection cable
- Explosion-tested version: no
- Impulse durability wire-earth: C2: 10 kV / 5 kA (8/20µs)
- Impulse durability wire-wire: C2: 10 kV / 5 kA (8/20µs)
- Insertion loss: ≤3 dB
- Insulation resistance: >1 GΩ
- Kategorie: Type 2+3 / C2+C1
- Lightning impulse current: 2,5 kA
- Lightning impulse current terrestrial input: 1
- Lightning protection zone LPZ: 1→3
More info
▲| Arrestor monitoring | no |
|---|---|
| Capacity (wire-earth) | <500 pF |
| Capacity (wire-wire) | <500 pF |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,1222 kg CO2e / 1 Piece |
| Cut-off frequency | 2800 MHz |
| Dimension | 70V |
| Earthing via: | Connection cable |
| Explosion-tested version | no |
| Impulse durability wire-earth | C2: 10 kV / 5 kA (8/20µs) |
| Impulse durability wire-wire | C2: 10 kV / 5 kA (8/20µs) |
| Insertion loss | ≤3 dB |
| Insulation resistance | >1 GΩ |
| Kategorie | Type 2+3 / C2+C1 |
| Lightning impulse current | 2,5 kA |
| Lightning impulse current terrestrial input | 1 |
| Lightning protection zone LPZ | 1→3 |
| Maximum continuous voltage AC | 130 V |
| Maximum continuous voltage DC | 185 V |
| Maximum continuous voltage Vc SAT inputs | 22 V |
| Maximum continuous voltage Vc terrestrial input | 70 V |
| Nominal discharge current SAT inputs | 300 A |
| Nominal load current AC | 1,4 A |
| Nominal load current DC | 2 A |
| Number of poles | 5 |
|---|---|
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Plug-in system | F |
| Protection level | <800 V |
| Protection level wire-earth | <800 V |
| Protection level wire-wire | <800 V |
| Protection level SAT inputs at In | <45 V |
| Protection level Terrestrial input at In | <500 V |
| Protection rating | IP10 |
| Response time | <1 ns |
| Return loss | >30 dB |
| Screening | Direct |
| Shielding connection available | yes |
| Signalling on device | None |
| SPD to IEC 61643-21 | Class II+III / C2+C1 |
| Telecommunications contact | no |
| Testing standard | IEC 61643-21 |
| Total discharge current (10/350) | 5 kA |
| Total discharge current (8/20) | 0,5 kA |
| Version for | Fine protection device |
| Wave resistance | 75 Ω |
