OBO BETTERMANN
>
TBS Transient and lightning protection systems - OBO BETTERMANN
>
Surge , arrestor, type 3
>
5081690
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

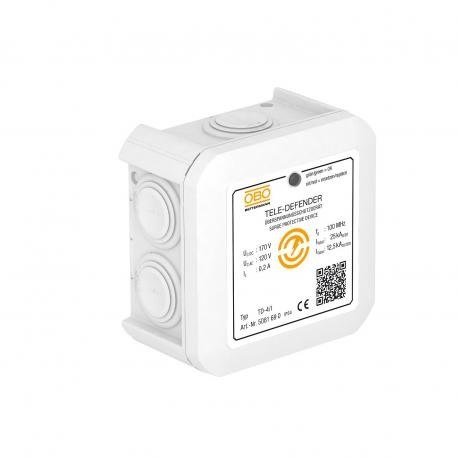

TD-4/I 5081690 OBO BETTERMANN Surge protection device for TK systems, White, Plastic
TD-4/I
5081690
OBO BETTERMANN
1 Pcs.
Surge protection device for TK systems, White, Plastic
Combination protection device TD-4/I for ISDN and DSL systems. Data cable protection device for telecommunications equipment• Low protection level at a high current load• "Push-in" terminals for quick installation• Bandwidth-optimised for secure transmission• Surface mounting • Visual function displayApplication: DSL systems, IP connections, ISDN or analogue telecommunications
Automation > Surge protection device for data networks/MCR-technology
Surge , arrestor, type 3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Arrestor monitoring | no |
|---|---|
| Capacity (wire-earth) | <10 pF |
| Capacity (wire-wire) | <50 pF |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4171 kg CO2e / 1 Piece |
| Colour | White |
| Connection cross-section, flexible, max. | 0,75 mm² |
| Connection cross-section, flexible, min. | 0,14 mm² |
| Connection cross-section, multi-wire, max. | 0,75 mm² |
| Connection cross-section, multi-wire, min. | 0,14 mm² |
| Connection cross-section, rigid, max. | 0,75 mm² |
| Connection cross-section, rigid, min. | 0,14 mm² |
| Cut-off frequency | 100 MHz |
| Dimension | 170V |
| Explosion-tested version | no |
| Impulse durability wire-earth | C2: 18 kV / 9 kA (8/20µs) |
| Impulse durability wire-wire | C2: 18 kV / 9 kA (8/20µs) |
| Insertion loss | ≤3 dB |
| Insulation resistance | >1 MΩ |
| Kategorie | Type 1+2+3 / D1+C2+C1 |
| Lightning impulse current | 2,5 kA |
| Lightning protection zone LPZ | 0→3 |
| Material | Plastic |
| Maximum continuous voltage AC | 120 V |
|---|---|
| Maximum continuous voltage DC | 170 V |
| Nominal load current AC | 0,14 A |
| Nominal load current DC | 0,2 A |
| Number of poles | 4 |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Plug-in system | RJ11 |
| Protection level wire-earth | <650 V |
| Protection level wire-wire | <300 V |
| Protection level, shield-earth (S-PE) | 850 V |
| Protection rating | IP54 |
| Screening | Indirect |
| Series resistance per wire | 9 Ω ± 10 % |
| Shielding connection available | yes |
| Signalling on device | Visual |
| SPD to IEC 61643-21 | Class I+II+III / D1+C2+C1 |
| Telecommunications contact | no |
| Testing standard | IEC 61643-21 |
| Total discharge current (10/350) | D1: 12,5 kA |
| Total discharge current (8/20) | 25 kA |
