OBO BETTERMANN SD09-V11 9 SD09-V11 9 5080061 OBO BETTERMANN Data line protection device for V24 interface D-SUB 9, 6V, View larger
Images are for illustrative purposes only. Please refer to data sheet for details

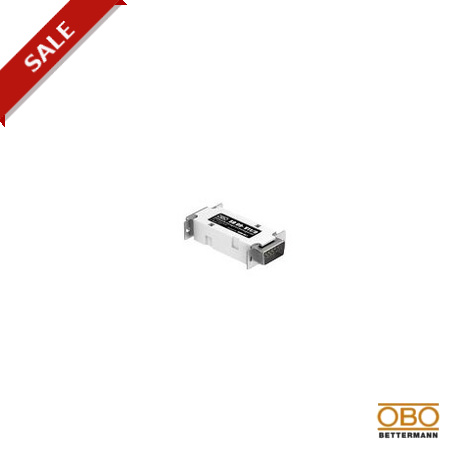

SD09-V11 9 5080061 OBO BETTERMANN Data line protection device for V24 interface D-SUB 9, 6V,

SD09-V11 9

5080061

OBO BETTERMANN

1 Pcs.

Data line protection device for V24 interface D-SUB 9, 6V, Prot/data lines SD09-V11 9 device, for V24 D-SUB 9 6V interface,

Automation > Surge protection device for data networks/MCR-technology
Surge , arrestor, type 3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann SD09-V11 9 data line protection device for V24 interface D-SUB 9 is utilized in industrial automation environments to safeguard sensitive communication ports and electronics from transient overvoltages and electrical surges. These protective components help prevent costly equipment downtime and maintain signal integrity across complex signal networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Max. continuous voltage AC (EF004198): 5.2 V
  • Max. continuous voltage DC (EF004777): 7.5 V
  • Voltage protection level core/core (EF004233): 100 V
  • Voltage protection level core/earth (EF004234): 100 V
  • With remote signalling contact (EF000422): No
  • Degree of protection (IP) (EF005474): IP40
