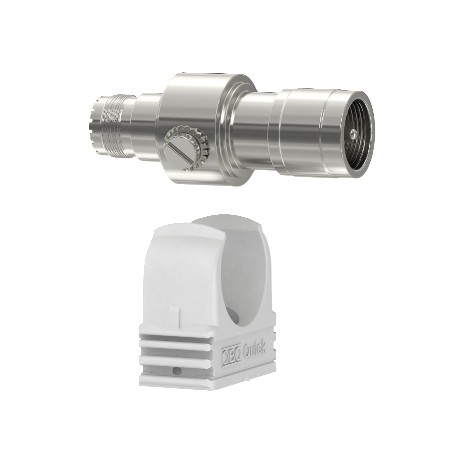

OBO BETTERMANN S-UHF M/W S-UHF M/W 5093023 OBO BETTERMANN Protection device for high-frequency cables, 130V, View larger
Images are for illustrative purposes only. Please refer to data sheet for details

S-UHF M/W 5093023 OBO BETTERMANN Protection device for high-frequency cables, 130V,

S-UHF M/W

5093023

OBO BETTERMANN

1 Pcs.

Protection device for high-frequency cables, 130V, Coaxial protection devices for S-UHF connection: male/female. Coaxial data cable protection devices • Basic protection • High pulsed current carrying capacity 2 x 2.5 kA (10/350 µs) • Simple installation (adapter plug), m = male/f = female connector • Various plug combinations • With UHF connector • Optimised transmission behaviour• Including OBO M25 Quick clip for simple installation

Automation > Combined arrester for data networks/MCR-technology
Surge , arrestor, type 3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann protection device for high-frequency cables (part number S-UHF M/W) is engineered to prevent electrical surges and transient voltage spikes from damaging sensitive RF transmission lines. These specialized suppressors are installed along coaxial communication paths to ensure equipment safety without signal degradation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Arrestor monitoring: no
  • Capacity (wire-earth): <20 pF
  • Capacity (wire-wire): <10 pF
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0187 kg CO2e / 1 Piece
  • Cut-off frequency: 1300 MHz
  • Dimension: 130V
  • Explosion-tested version: no
  • Impulse durability wire-earth: C2: 10 kV / 5 kA (8/20µs)
  • Impulse durability wire-wire: C2: 10 kV / 5 kA (8/20µs)
  • Insertion loss: ≤0,2 dB
  • Insulation resistance: >1 GΩ
  • Kategorie: Type 1+2 / D1+C2
  • Lightning impulse current: 2,5 kA
  • Lightning protection zone LPZ: 0→2
  • Maximum continuous voltage AC: 130 V
  • Maximum continuous voltage DC: 185 V

More info

▲
Arrestor monitoringno
Capacity (wire-earth)<20 pF
Capacity (wire-wire)<10 pF
CO2 Footprint (GWP) Cradle-to-Gate0,0187 kg CO2e / 1 Piece
Cut-off frequency1300 MHz
Dimension130V
Explosion-tested versionno
Impulse durability wire-earthC2: 10 kV / 5 kA (8/20µs)
Impulse durability wire-wireC2: 10 kV / 5 kA (8/20µs)
Insertion loss≤0,2 dB
Insulation resistance>1 GΩ
KategorieType 1+2 / D1+C2
Lightning impulse current2,5 kA
Lightning protection zone LPZ0→2
Maximum continuous voltage AC130 V
Maximum continuous voltage DC185 V
Nominal load current AC7 A
Nominal load current DC10 A
Number of poles1
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Plug-in systemUHF
Protection level<800 V
Protection level wire-earth<800 V
Protection level wire-wire<800 V
Protection ratingIP40
Return loss≥14 dB
ScreeningDirect
Shielding connection availableyes
Signalling on deviceNone
SPD to IEC 61643-21Class I+II / D1+C2
Telecommunications contactno
Testing standardIEC 61643-21
Total discharge current (10/350)5 kA
Total discharge current (8/20)10 kA
Wave resistance50 Ω
