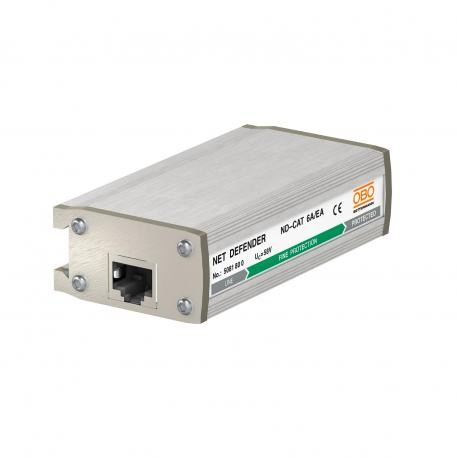

OBO BETTERMANN ND-CAT6A/EA ND-CAT6A/EA 5081800 OBO BETTERMANN Net Defender for Class EA / CAT6A, View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ND-CAT6A/EA 5081800 OBO BETTERMANN Net Defender for Class EA / CAT6A,

ND-CAT6A/EA

5081800

OBO BETTERMANN

1 Pcs.

Net Defender for Class EA / CAT6A, Surge protection for high-speed networks up to 10 GBit (Class EA/CAT6A). Data cable protection device for high-speed networks • Protection class: Fine protection• High-quality RJ45 sockets • Low protection level at high current load • Earthing via DIN rail or connection cable• Support of Power over Ethernet ++ (PoE++/4PPoE) to 1 A in accordance with IEEE 802.3 • Tested transmission quality in networks up to 10 GBit/s (Class EA) or CAT6 • Rapid installation through plug-in version• Incl. DIN rail fastening set and earthing cable Application example: 10 GBit Ethernet, 10/100 MBit Ethernet, PoE applications, IP camera systems, ISDN S0 interfaces

Automation > Surge protection device for data networks/MCR-technology
Surge , arrestor, type 3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Net Defender for Class EA / CAT6A, such as the Obo Bettermann ND-CAT6A/EA, protects high-speed Ethernet data networks, industrial computing nodes, and structured cabling installations from transient overvoltages induced by lightning or switching operations. These specialized data line protectors preserve high data transmission bandwidths while safely diverting surge energy away from sensitive network interface cards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Channel performance Ansi/EA: CAT 6A
  • Channel performance ISO/IEC: Class EA
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,5117 kg CO2e / 1 Piece
  • Dimension: 58V
  • Earthing via:: Connection cable / DIN rail
  • Explosion-tested version: no
  • Impulse durability wire-earth: C2: 2 kV / 1 kA (8/20µs)
  • Impulse durability wire-wire: C1: 0,3 kV / 0,15 kA (8/20µs)
  • Insertion loss: ≤3 dB
  • Kategorie: Type 2+3 / C2+C1
  • Lightning protection zone LPZ: 1→3
  • Maximum continuous voltage AC: 41 V
  • Maximum continuous voltage DC: 58 V
  • Number of poles: 8
  • Permitted temperature range, max.: 80 °C
  • Permitted temperature range, min.: -40 °C

More info

▲
Channel performance Ansi/EACAT 6A
Channel performance ISO/IECClass EA
CO2 Footprint (GWP) Cradle-to-Gate1,5117 kg CO2e / 1 Piece
Dimension58V
Earthing via:Connection cable / DIN rail
Explosion-tested versionno
Impulse durability wire-earthC2: 2 kV / 1 kA (8/20µs)
Impulse durability wire-wireC1: 0,3 kV / 0,15 kA (8/20µs)
Insertion loss≤3 dB
KategorieType 2+3 / C2+C1
Lightning protection zone LPZ1→3
Maximum continuous voltage AC41 V
Maximum continuous voltage DC58 V
Number of poles8
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Plug-in systemRJ45 8(8)
Protection level wire-earth<700 V
Protection level wire-wire<120 V
Protection ratingIP20
ScreeningDirect
Shielding connection availableyes
SPD to IEC 61643-21Class II+III / C2+C1
Telecommunications contactno
Testing standardIEC 61643-21
Total discharge current (8/20)7 kA
Version forFine protection, 8 wires + shield
