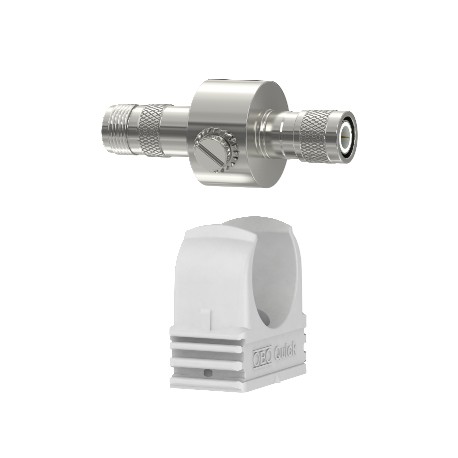

DS-TNC M/W 5093270 OBO BETTERMANN Protection device for high-frequency cables, 130V,

DS-TNC M/W

5093270

OBO BETTERMANN

1 Pcs.

Protection device for high-frequency cables, 130V, Coaxial protection device for TNC connection: male/female. Coaxial data cable protection devices • Basic protection • High pulsed current carrying capacity 2 x 2.5 kA (10/350 µs) • Simple installation (adapter plug), m = plug/f = female connector • Various plug combinations • With TNC connector • Optimised transmission behaviour• Including OBO M25 Quick clip for simple installation

Automation > Combined arrester for data networks/MCR-technology
Surge , arrestor, type 3
