OBO BETTERMANN
>
TBS Transient and lightning protection systems - OBO BETTERMANN
>
Surge , arrestor, type 3
>
5093252
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

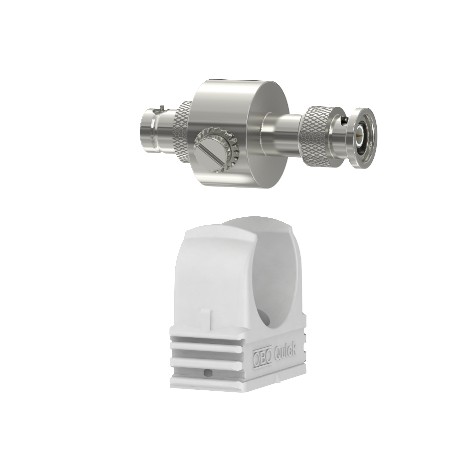

DS-BNC M/W 5093252 OBO BETTERMANN Protection device for high-frequency cables,
DS-BNC M/W
5093252
OBO BETTERMANN
1 Pcs.
Protection device for high-frequency cables,
DS-BNC M/W protection device, for high frequency lines 130V,
Coaxial protector for BNC connection: male/female. Coaxial data line protection devices• Basic protection• High resistance to lightning current intensities 2 x 2.5 kA (10/350μs)• Easy installation (adapter), m = male, w = female• Different connector combinations• With BNC connector• Optimal transmission behavior• Includes OBO Quick M25 clamp for easy installation
Automation > Combined arrester for data networks/MCR-technology
Surge , arrestor, type 3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Coaxial data cable protection devices
• Basic protection
• High pulsed current carrying capacity 2 x 2.5 kA (10/350 µs)
• Simple installation (adapter plug), m = plug/f = female connector
• Various plug combinations
• With BNC connector
• Optimised transmission behaviour
• Including OBO M25 Quick clip for simple installation
• Basic protection
• High pulsed current carrying capacity 2 x 2.5 kA (10/350 µs)
• Simple installation (adapter plug), m = plug/f = female connector
• Various plug combinations
• With BNC connector
• Optimised transmission behaviour
• Including OBO M25 Quick clip for simple installation
| Feature Name | Feature Value |
|---|---|
| Max. continuous voltage AC (EF004198) | 130 V |
| Max. continuous voltage DC (EF004777) | 185 V |
| Voltage protection level core/core (EF004233) | 800 V |
| Voltage protection level core/earth (EF004234) | 800 V |
| With remote signalling contact (EF000422) | No |
| Degree of protection (IP) (EF005474) | IP40 |
