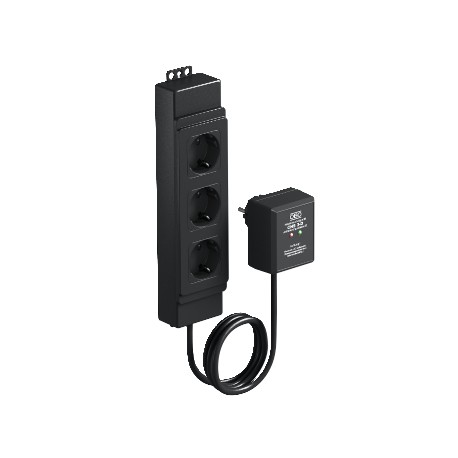

OBO BETTERMANN CNS 3-D-D CNS 3-D-D 5092701 OBO BETTERMANN Surge protection device Germany version, Black, View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CNS 3-D-D 5092701 OBO BETTERMANN Surge protection device Germany version, Black,

CNS 3-D-D

5092701

OBO BETTERMANN

1 Pcs.

Surge protection device Germany version, Black, Surge protective device CNS 3 D. Surge protective device, type 3, to DIN EN 61643-11, intended for use in protective contact sockets. • With visual and audible signalling, function display • 3-way socket • Length of connection cable: 2 m • Y circuit for high electrical safety Application: For example, the protection of PCs, printers, copiers, fax machines, etc.

Automation > Surge protection device for terminal equipment
Surge , arrestor, type 3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann surge protection device is engineered to safeguard sensitive terminal equipment from damaging voltage spikes and transient electrical surges originating on power supply lines. These protective units are widely deployed in commercial and industrial electrical distribution networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Blow-out: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,876 kg CO2e / 1 Piece
  • Colour: Black
  • Connecting cable length: 2 m
  • Country-specific version: D
  • Dimension: 230V
  • Lightning protection zone LPZ: 2→3
  • Max. continuous operating voltage: 255 V
  • Maximum back-up fuse: 16 A
  • Nominal discharge surge current: 2,5 kA
  • Nominal voltage: 230 V
  • Protection level: 1000/ 1500 kV
  • Protection level (L-N / L/N-PE): < 1000 / < 1500 V
  • Protection level (L-N): < 1,0 kV
  • Protection level (N-PE): < 1,5 kV
  • Rated current: 16 A

More info

▲
Blow-outno
CO2 Footprint (GWP) Cradle-to-Gate0,876 kg CO2e / 1 Piece
ColourBlack
Connecting cable length2 m
Country-specific versionD
Dimension230V
Lightning protection zone LPZ2→3
Max. continuous operating voltage255 V
Maximum back-up fuse16 A
Nominal discharge surge current2,5 kA
Nominal voltage230 V
Protection level1000/ 1500 kV
Protection level (L-N / L/N-PE)< 1000 / < 1500 V
Protection level (L-N)< 1,0 kV
Protection level (N-PE)< 1,5 kV
Rated current16 A
Response time<25 ns
Signalling on deviceOptical and acoustic
SPD to EN 61643-11Type 3
SPD to IEC 61643-1Class III
Telecommunications contactno
