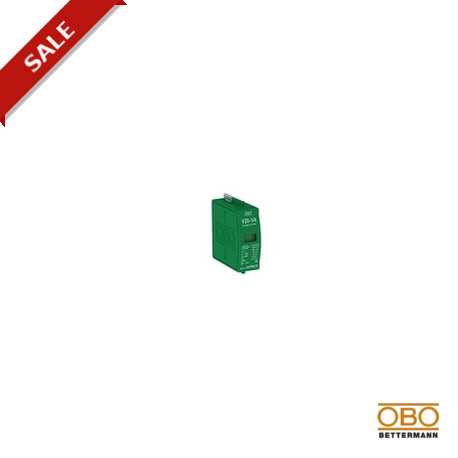

OBO BETTERMANN V20-VA 0 V20-VA 0 5099613 OBO BETTERMANN SurgeController V20 leakage current free, upper, 385V, View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V20-VA 0 5099613 OBO BETTERMANN SurgeController V20 leakage current free, upper, 385V,

V20-VA 0

5099613

OBO BETTERMANN

1 Pcs.

SurgeController V20 leakage current free, upper, 385V, SurgeController V20, plug-in arrester, leak current-free. Separate cover (plug-in). • Suitable for use in pre-meter area (completely leakage current-free) • Plug-in cover; cover can be separated from base without tools

Automation > Surge protection device for power supply systems
Surge , arrestor, type 2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered to be leakage current free, the Obo Bettermann V20-VA 0 SurgeController V20 leakage current free, upper, 385V serves as an advanced upper protection module within electrical distribution setups. It prevents unwanted leakage currents while successfully shunting transient overvoltages away from sensitive equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Blow-out: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1894 kg CO2e / 1 Piece
  • Dimension: 385V
  • Installation type: On basic element
  • Lightning protection zone LPZ: 1→2
  • Max. mains-side overcurrent protection: 125
  • Maximum back-up fuse: 125 A
  • Maximum continuous voltage AC: 385 V
  • Maximum discharge current (8/20 μs): 25 kA
  • Nominal discharge current (8/20 µs): 20 kA
  • Operating temperature, max.: 80 °C
  • Operating temperature, min.: -40 °C
  • Permitted temperature range, max.: 80 °C
  • Permitted temperature range, min.: -40 °C
  • Pole version: 1
  • Protection rating: IP20

More info

▲
Blow-outno
CO2 Footprint (GWP) Cradle-to-Gate0,1894 kg CO2e / 1 Piece
Dimension385V
Installation typeOn basic element
Lightning protection zone LPZ1→2
Max. mains-side overcurrent protection125
Maximum back-up fuse125 A
Maximum continuous voltage AC385 V
Maximum discharge current (8/20 μs)25 kA
Network formOther
Nominal discharge current (8/20 µs)20 kA
Operating temperature, max.80 °C
Operating temperature, min.-40 °C
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Pole version1
Protection ratingIP20
Remote signallingno
Response time<100 ns
Signalling on deviceVisual
SPD to EN 61643-11Type 2
SPD to IEC 61643-1Class II
Version for1-pole cover; 385 V
