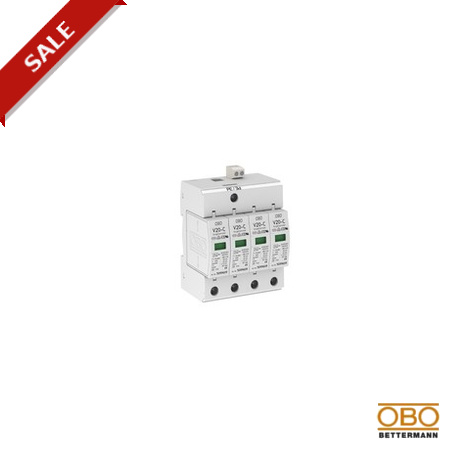

V20-C 4+FS-280 5094734 OBO BETTERMANN SurgeController V20 4-pole with remote signalling, 280V,
V20-C 4+FS-280
5094734
OBO BETTERMANN
1 Pcs.
Automation > Surge protection device for power supply systems
Surge , arrestor, type 2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The V20-C 4+FS-280 5094734 OBO BETTERMANN SurgeController V20 4-pole with remote signalling, 280V, functions as a high-performance protective element for multi-phase electrical networks. These surge suppressors are integrated into industrial distribution systems to absorb transient voltage surges and relay status information via remote signaling contacts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Arrester surge current (8/20 µs) [total]: 80 kA
- Blow-out: no
- CO2 Footprint (GWP) Cradle-to-Gate: 1,6672 kg CO2e / 1 Piece
- Conductor cross-section, rigid (single-wire/multiwire), max.: 35 mm²
- Conductor cross-section, rigid (single-wire/multiwire), min.: 2,5 mm²
- Dimension: 280V
- Installation type: DIN rail 35 mm
- Integrated back-up fuse: no
- Lightning protection zone LPZ: 1→2
- Max. mains-side overcurrent protection: 125
- Maximum back-up fuse: 125 A
- Maximum continuous voltage AC: 280 V
- Maximum discharge current (8/20 μs): 40 kA
- Network form: TN
- Nominal discharge current (8/20 µs): 20 kA
- Nominal discharge current (8/20 µs) [L-N]: 20 kA
More info
▲| Arrester surge current (8/20 µs) [total] | 80 kA |
|---|---|
| Blow-out | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,6672 kg CO2e / 1 Piece |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 35 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 2,5 mm² |
| Dimension | 280V |
| Installation type | DIN rail 35 mm |
| Integrated back-up fuse | no |
| Lightning protection zone LPZ | 1→2 |
| Max. mains-side overcurrent protection | 125 |
| Maximum back-up fuse | 125 A |
| Maximum continuous voltage AC | 280 V |
| Maximum discharge current (8/20 μs) | 40 kA |
| Network form | TN |
| Nominal discharge current (8/20 µs) | 20 kA |
| Nominal discharge current (8/20 µs) [L-N] | 20 kA |
|---|---|
| Nominal voltage AC (50/60 Hz) | 230 V |
| Operating temperature, max. | 80 °C |
| Operating temperature, min. | -40 °C |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Pole version | 4 |
| Protection rating | IP20 |
| Remote signalling | yes |
| Response time | <25 ns |
| Signalling on device | Visual |
| SPD to EN 61643-11 | Type 2 |
| SPD to IEC 61643-1 | Class II |
| Test class, type 2 | yes |
| Version for | 4-pole + FS |
