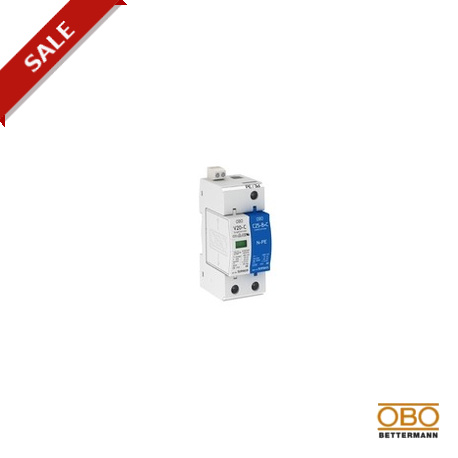

OBO BETTERMANN V20-C 1+NPE+FS V20-C 1+NPE+FS 5094760 OBO BETTERMANN SurgeController V20 1+1 with remote signalling, 280V, View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V20-C 1+NPE+FS 5094760 OBO BETTERMANN SurgeController V20 1+1 with remote signalling, 280V,

V20-C 1+NPE+FS

5094760

OBO BETTERMANN

1 Pcs.

SurgeController V20 1+1 with remote signalling, 280V, Surge arrester, 1-pole + NPE with remote signalling 280 V. Surge arrester, type 2• Complete unit consisting of upper part and base, pre-mounted and ready for connection• Suitable for TN and TT network systems• Plug-in cover; cover can be separated from base without tools• With remote signalling and potential-free NO contact for function monitoring• Incl. thermal and dynamic cut-off unit• With visual display of defects• High current conductivity and long service life• Labelled connections Application example: Residential buildings, single-family homes and industrial* Complete = cover and base

Automation > Surge protection device for power supply systems
Surge , arrestor, type 2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The V20-C 1+NPE+FS 5094760 OBO BETTERMANN SurgeController V20 1+1 with remote signalling, 280V, is a modular protective device designed to defend single-phase alternating current networks from transient overvoltages. Such components are typically mounted in consumer units and distribution panels to ensure uninterrupted operation of connected electronic assets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Arrester surge current (8/20 µs) [total]: 40 kA
  • Blow-out: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,1151 kg CO2e / 1 Piece
  • Conductor cross-section, rigid (single-wire/multiwire), max.: 35 mm²
  • Conductor cross-section, rigid (single-wire/multiwire), min.: 2,5 mm²
  • Dimension: 280V
  • Installation type: DIN rail 35 mm
  • Integrated back-up fuse: no
  • Lightning protection zone LPZ: 1→2
  • Max. mains-side overcurrent protection: 125
  • Maximum back-up fuse: 125 A
  • Maximum continuous voltage AC: 280 V
  • Maximum discharge current (8/20 μs): 40 kA
  • Nominal discharge current (8/20 µs): 20 kA
  • Nominal voltage AC (50/60 Hz): 230 V
  • Operating temperature, max.: 80 °C

More info

▲
Arrester surge current (8/20 µs) [total]40 kA
Blow-outno
CO2 Footprint (GWP) Cradle-to-Gate1,1151 kg CO2e / 1 Piece
Conductor cross-section, rigid (single-wire/multiwire), max.35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.2,5 mm²
Dimension280V
Installation typeDIN rail 35 mm
Integrated back-up fuseno
Lightning protection zone LPZ1→2
Max. mains-side overcurrent protection125
Maximum back-up fuse125 A
Maximum continuous voltage AC280 V
Maximum discharge current (8/20 μs)40 kA
Network formOther
Nominal discharge current (8/20 µs)20 kA
Nominal voltage AC (50/60 Hz)230 V
Operating temperature, max.80 °C
Operating temperature, min.-40 °C
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Pole version1+N/PE
Protection ratingIP20
Remote signallingyes
Response time<25 ns
Signalling on deviceVisual
SPD to EN 61643-11Type 2
SPD to IEC 61643-1Class II
Test class, type 2yes
Version for1+NPE + FS
