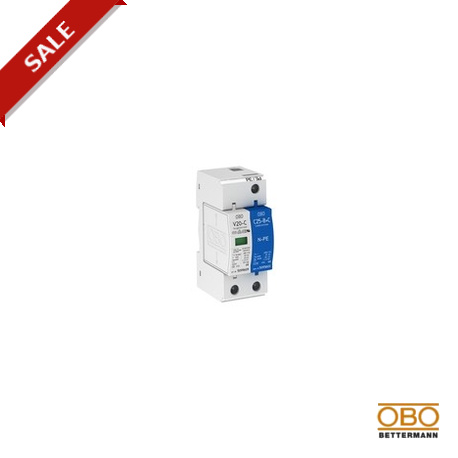

OBO BETTERMANN V20-C 1+NPE-280 V20-C 1+NPE-280 5094650 OBO BETTERMANN SurgeController V20 1+1 version, 280V, View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V20-C 1+NPE-280 5094650 OBO BETTERMANN SurgeController V20 1+1 version, 280V,

V20-C 1+NPE-280

5094650

OBO BETTERMANN

1 Pcs.

SurgeController V20 1+1 version, 280V, Surge Arrester V20 V20-C 1+NPE-280, Type 1+1 280V,

Automation > Surge protection device for power supply systems
Surge , arrestor, type 2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann V20-C 1+NPE-280 functions as a high-capacity surge controller built to protect industrial and commercial electrical networks from transient voltage spikes. Installed inside control enclosures, such components absorb excess electrical energy to maintain system stability. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Nominal discharge surge current (8/20) (EF004214): 20 kA
  • Max. discharge surge current (8/20) (EF012274): 40 kA
  • Nominal voltage AC (EF004220): 230 V
  • Max. continuous voltage AC (EF004198): 280 V
  • Voltage protection level (EF003525): 1.3 kV
  • Integrated backup fuse (EF008797): No
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Construction size (EF002566): 2 modular spacing
  • Signalling at the device (EF004241): Optic
  • Category type 2 (EF004230): Yes
  • Degree of protection (IP) (EF005474): IP20
