OBO BETTERMANN
>
TBS Transient and lightning protection systems - OBO BETTERMANN
>
Surge , arrestor, type 2
>
5093382
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

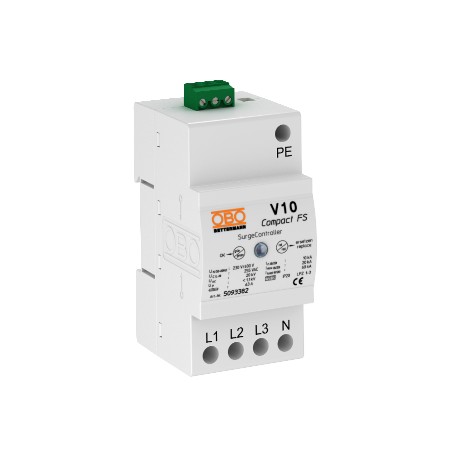

V10 COMPACT-FS 5093382 OBO BETTERMANN V10 Compact with remote signalling, 255V,
V10 COMPACT-FS
5093382
OBO BETTERMANN
1 Pcs.
V10 Compact with remote signalling, 255V,
Surge arrester V10 Compact with remote signalling 255 V. Surge protective device, compact module, type 2+3• Surge protection in sub-distributors to VDE 0100-443 (IEC 60364-4-44)• Arresting capacity up to 60 kA (8/20) in total• Integrated 3+1 solution for TN and TT network systems on 45 mm module width • High-performance varistor technology • Including thermic and dynamic cut-off unit and visual function display • ...-FS version with potential-free changeover contact for remote signalling Application: Sub/storey distribution as well as device protection in rotational current systems.
Automation > Surge protection device for power supply systems
Surge , arrestor, type 2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Arrester surge current (8/20 µs) [total] | 60 kA |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 1,06 kg CO2e / 1 Piece |
| Conductor cross-section, flexible (fine-wire), max. | 10 mm² |
| Conductor cross-section, flexible (fine-wire), min. | 2,5 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 10 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 2,5 mm² |
| Dimension | 255V |
| FM contacts | Changeover |
| Follow current quenching capacity (eff) [N-PE] | 10 kA |
| Installation type | DIN rail 35 mm |
| Integrated back-up fuse | no |
| Lightning protection zone LPZ | 1→3 |
| Max. mains-side overcurrent protection | 63 A gL/gG |
| Maximum back-up fuse | 63 A |
| Maximum continuous voltage AC | 255 V |
| Maximum discharge current (8/20 μs) | 20 kA |
| Maximum discharge current (8/20 μs) [N-PE] | 60 kA |
| Network form | Other |
| Nominal discharge current (8/20 µs) | 10 kA |
| Nominal voltage AC (50/60 Hz) | 230 V |
| Operating temperature, max. | 80 °C |
|---|---|
| Operating temperature, min. | -40 °C |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Pole version | 3+N/PE |
| Protection level [L-N] | ≤1,1 |
| Protection rating | IP20 |
| Remote signalling | yes |
| Response time | <25 ns |
| Signalling on device | Visual |
| SPD to EN 61643-11 | Type 2+3 |
| SPD to IEC 61643-1 | Class II+III |
| Test class, type 2 | yes |
| Test class, type 3 | yes |
| TN network form | yes |
| TN-C-S network form | yes |
| TN-S network form | yes |
| TT network form | yes |
| Version for | 3+NPE |
