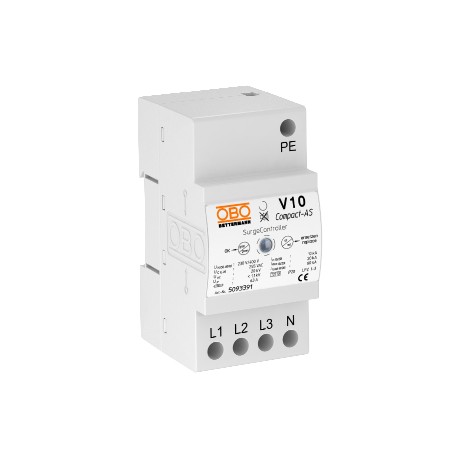

OBO BETTERMANN V10 COMPACT-AS V10 COMPACT-AS 5093391 OBO BETTERMANN V10 Compact with acoustic signalling, 255V, View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V10 COMPACT-AS 5093391 OBO BETTERMANN V10 Compact with acoustic signalling, 255V,

V10 COMPACT-AS

5093391

OBO BETTERMANN

1 Pcs.

V10 Compact with acoustic signalling, 255V, Surge arrester V10 Compact with audible signalling 255 V. Surge protective device, compact module, type 2+3• Surge protection in sub-distributors to VDE 0100-443 (IEC 60364-4-44)• Arresting capacity up to 60 kA (8/20) in total• Integrated 3+1 solution for TN and TT network systems on 45 mm module width • High-performance varistor technology • Including thermic and dynamic cut-off unit and visual function display • ...-AS version with additional acoustic defect signalling (switchable) Application: Sub/storey distribution as well as device protection in rotational current systems.

Automation > Surge protection device for power supply systems
Surge , arrestor, type 2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Equipped with acoustic signaling capabilities, the V10 COMPACT-AS 5093391 OBO BETTERMANN V10 Compact with acoustic signalling, 255V, alerts operators to surge protection status while safeguarding electrical networks. Compact surge arresters are integrated into sub-distribution boards and terminal enclosures to shield sensitive electronic loads against transient spikes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Arrester surge current (8/20 µs) [total]: 60 kA
  • Blow-out: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,0235 kg CO2e / 1 Piece
  • Conductor cross-section, rigid (single-wire/multiwire), max.: 10 mm²
  • Conductor cross-section, rigid (single-wire/multiwire), min.: 2,5 mm²
  • Dimension: 255V
  • Follow current quenching capacity (eff) [N-PE]: 0,1 kA
  • Installation type: DIN rail 35 mm
  • Integrated back-up fuse: no
  • Lightning protection zone LPZ: 1→3
  • Max. mains-side overcurrent protection: 63
  • Maximum back-up fuse: 63 A
  • Maximum continuous voltage AC: 255 V
  • Maximum discharge current (8/20 μs): 20 kA
  • Nominal discharge current (8/20 µs): 10 kA
  • Nominal voltage AC (50/60 Hz): 230 V

More info

▲
Arrester surge current (8/20 µs) [total]60 kA
Blow-outno
CO2 Footprint (GWP) Cradle-to-Gate1,0235 kg CO2e / 1 Piece
Conductor cross-section, rigid (single-wire/multiwire), max.10 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.2,5 mm²
Dimension255V
Follow current quenching capacity (eff) [N-PE]0,1 kA
Installation typeDIN rail 35 mm
Integrated back-up fuseno
Lightning protection zone LPZ1→3
Max. mains-side overcurrent protection63
Maximum back-up fuse63 A
Maximum continuous voltage AC255 V
Maximum discharge current (8/20 μs)20 kA
Network formOther
Nominal discharge current (8/20 µs)10 kA
Nominal voltage AC (50/60 Hz)230 V
Operating temperature, max.80 °C
Operating temperature, min.-40 °C
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Pole version3+N/PE
Protection ratingIP20
Remote signallingno
Response time<25 ns
Signalling on deviceOptical and acoustic
SPD to EN 61643-11Type 2+3
SPD to IEC 61643-1Class II+III
Test class, type 2yes
Test class, type 3yes
TN network formyes
TN-C-S network formyes
TN-S network formyes
TT network formyes
