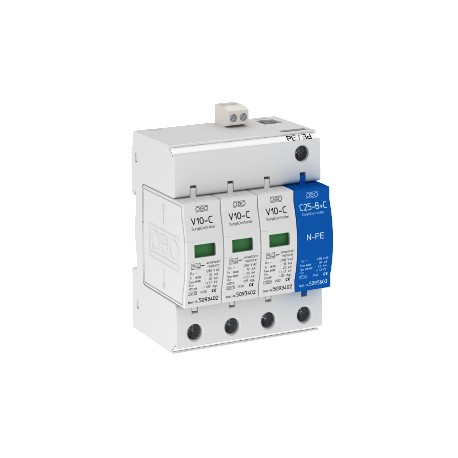

OBO BETTERMANN V10-C 3+NPE+FS V10-C 3+NPE+FS 5094931 OBO BETTERMANN SurgeController V10 3+1 version with FS, 280V, View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V10-C 3+NPE+FS 5094931 OBO BETTERMANN SurgeController V10 3+1 version with FS, 280V,

V10-C 3+NPE+FS

5094931

OBO BETTERMANN

1 Pcs.

SurgeController V10 3+1 version with FS, 280V, Surge Arrester V10 V10-C 3+NPE+FS, 3+1 version with FS 280V, V10 surge arrester, 3-pole + NPE with remote signalling 280 V. Type 2+3 surge arrester • Complete unit, with active part and socket, pre-assembled and ready for connection• Suitable for TN-S and TT network systems• With thermal and dynamic disconnector device• With visual fault indication• The ...-FS version has remote signalling, Potential-free shut-off contact for operation control• High discharge capacity with longer service life• Marked connections Application example: residential building or single-family house

Automation > Surge protection device for power supply systems
Surge , arrestor, type 2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Offering combined lightning and surge defense, the Obo Bettermann V10-C 3+NPE+FS 5094931 SurgeController V10 protects electrical systems from severe voltage anomalies. Such multi-stage devices are deployed in sub-distribution boards to shield sensitive electronic loads from transient disturbances. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Obo Bettermann
  • Manufacturer part number: V10-C 3+NPE+FS
  • Catalogue code: 5094931

More info

▲
V 10-C/...: lightning and surge protection device type 2+3 (Class C+D) to VDE 0675 part 6-11 (DIN en 61643-11) to overvoltage protection to DIN VDE 0100 part 443.

• With new Multibased base part and Multi-connection clamps
• Complete unit consisting of upper part and base, pre-mounted and ready for connection
• Suitable for any TN and TT network systems
• Plug-in arrestor with dynamic separating device
• With visual function display
• Version FS with remote signalling, potential-free changeover contact, for function monitoring
• High current conductivity and long service life
• Marked connections

Application example: residential buildings, single-family homes
