OBO BETTERMANN
>
TBS Transient and lightning protection systems - OBO BETTERMANN
>
Surge , arrestor, type 2
>
5094920
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

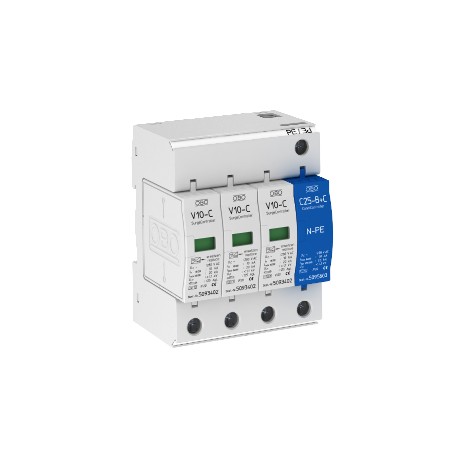

V10-C 3+NPE 5094920 OBO BETTERMANN SurgeController V10 3+1 version, 280V,
V10-C 3+NPE
5094920
OBO BETTERMANN
1 Pcs.
SurgeController V10 3+1 version, 280V,
Surge arrester V10 3-pole + NPE 280 V. Surge arrester, type 2+3 • Complete unit consisting of upper part and base, pre-mounted and ready for connection• Suitable for TN-S and TT network systems • Incl. thermal and dynamic cut-off unit • With visual display of defects• High current conductivity and long service life • Labelled connections Application example: Residential buildings, single-family homes
Automation > Surge protection device for power supply systems
Surge , arrestor, type 2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Arrester surge current (8/20 µs) [total] | 40 kA |
|---|---|
| Blow-out | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,0783 kg CO2e / 1 Piece |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 35 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 2,5 mm² |
| Dimension | 280V |
| Installation type | DIN rail 35 mm |
| Lightning protection zone LPZ | 1→3 |
| Max. mains-side overcurrent protection | 125 |
| Maximum back-up fuse | 125 A |
| Maximum continuous voltage (N-PE) | 255 V |
| Maximum continuous voltage AC | 280 V |
| Maximum discharge current (8/20 μs) | 20 kA |
| Maximum discharge current (8/20 μs) [L-N] | 20 kA |
| Maximum discharge current (8/20 μs) [N-PE] | 50 kA |
| Network form | Other |
| Nominal discharge current (8/20 µs) | 10 kA |
| Nominal discharge current (8/20 µs) [L-N] | 10 kA |
| Nominal discharge current (8/20 µs) [N-PE] | 30 kA |
|---|---|
| Nominal voltage AC (50/60 Hz) | 230 V |
| Operating temperature, max. | 80 °C |
| Operating temperature, min. | -40 °C |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Pole version | 3+N/PE |
| Protection rating | IP20 |
| Remote signalling | no |
| Response time | <25 ns |
| Signalling on device | Visual |
| SPD to EN 61643-11 | Type 2+3 |
| SPD to IEC 61643-1 | Class II+III |
| Test class, type 2 | yes |
| TN network form | yes |
| TN-C-S network form | yes |
| TN-S network form | yes |
| TT network form | yes |
