OBO BETTERMANN
>
VBS Connection and fastening systems - OBO BETTERMANN
>
Strips EC other
>
2016195
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

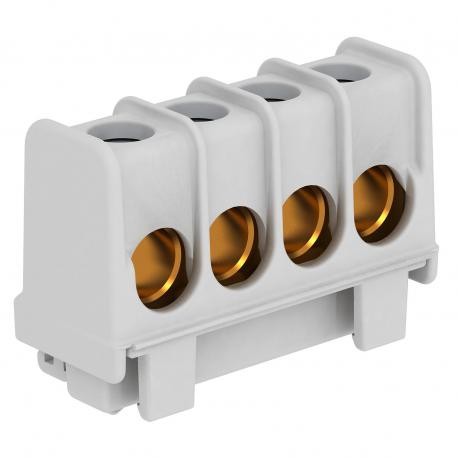

KL-T 16-35 2016195 OBO BETTERMANN Terminal strip , 35mm², Light grey, Polyamide, PA
KL-T 16-35
2016195
OBO BETTERMANN
10 Pcs.
Terminal strip , 35mm², Light grey, Polyamide, PA
Terminal strip 16–35 mm², junction box, T series, X series. Brass terminals, steel screws, electrogalvanised and transparently passivated, nominal cross-section 16 ÷ 35 mm², nominal voltage 400 V, 1-pin, with terminal sockets, max. connectable conductor per terminal 4 x 35 mm², 4 x 25 mm², 8 x 16 mm² or 12 x 10 mm².
Automation > Single- and multi-pole terminal strip
Strips EC other
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Closing plate required | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1639 kg CO2e / 1 Piece |
| Colour | Light grey |
| Connectable conductor cross-section, single-wire, max. | 35 mm² |
| Connectable conductor cross-section, single-wire, min. | 10 mm² |
| Connection position | Side |
| Cross-section | Max. connectable conductors per terminal max. 4 x 35 mm², 4 x 25 mm², 8x16 mm² or 12 x 10 mm² mm² |
| Dimension | 35mm² |
| Explosion-tested version | no |
| Height | 36 mm |
| Insulation material | Thermoplast |
| Length | 52 mm |
| Material | Polyamide |
|---|---|
| No. of terminals | 4 |
| Nominal cross-section, max. | 35 mm² |
| Nominal cross-section, min. | 16 mm² |
| Nominal current | 125 A |
| Nominal voltage | 400 V |
| Number of screwless terminals per pole | 1 |
| Pole number | 1 |
| Transparent | no |
| Version of electrical connection 1 | Screw connection |
| Width | 24 mm |
