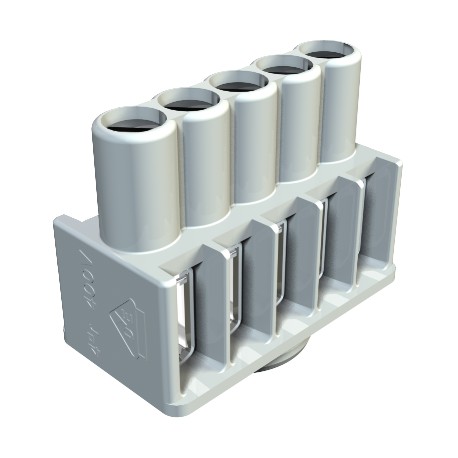

KL-T 01-04 2016180 OBO BETTERMANN Terminal strip , 4mm², Light grey, Polyamide, PA
KL-T 01-04
2016180
OBO BETTERMANN
10 Pcs.
Automation > Single- and multi-pole terminal strip
Strips EC other
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A light grey terminal strip, part number KL-T 01-04 from Obo Bettermann, facilitates organized wire connections in standard electrical installations. Such components are commonly deployed inside junction boxes and control cabinets to safely join multiple circuit conductors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Closing plate required: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0989 kg CO2e / 1 Piece
- Colour: Light grey
- Connectable conductor cross-section, single-wire, max.: 4 mm²
- Connectable conductor cross-section, single-wire, min.: 1 mm²
- Connection position: Side
- Dimension: 4mm²
- Explosion-tested version: no
- Height: 28 mm
- Insulation material: Thermoplast
- Length: 37,5 mm
- Material: Polyamide
- No. of terminals: 5
- Nominal cross-section, max.: 4 mm²
- Nominal cross-section, min.: 1 mm²
- Nominal current: 32 A
More info
▲| Closing plate required | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0989 kg CO2e / 1 Piece |
| Colour | Light grey |
| Connectable conductor cross-section, single-wire, max. | 4 mm² |
| Connectable conductor cross-section, single-wire, min. | 1 mm² |
| Connection position | Side |
| Cross-section | Max. connectable cross-sections per terminal max. 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm² mm² |
| Dimension | 4mm² |
| Explosion-tested version | no |
| Height | 28 mm |
| Insulation material | Thermoplast |
| Length | 37,5 mm |
| Material | Polyamide |
|---|---|
| No. of terminals | 5 |
| Nominal cross-section, max. | 4 mm² |
| Nominal cross-section, min. | 1 mm² |
| Nominal current | 32 A |
| Nominal voltage | 400 V |
| Number of screwless terminals per pole | 1 |
| Pole number | 5 |
| Transparent | no |
| Version of electrical connection 1 | Screw connection |
| Width | 20 mm |
