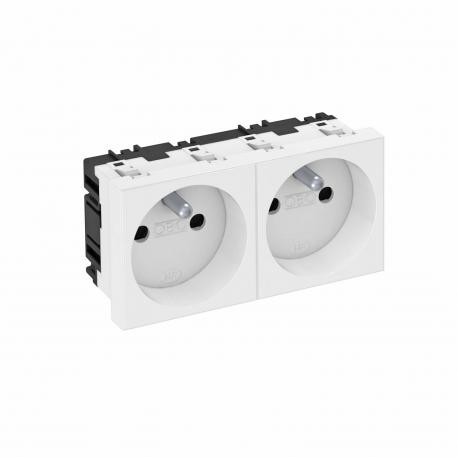

STD-F0 AL2 6120182 OBO BETTERMANN ELECTRICAL SOCKET 0°, DOUBLE-STD-F0 AL2
STD-F0 AL2
6120182
OBO BETTERMANN
1 Pcs.
Automation > Socket outlet
EGS device systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Obo Bettermann, the STD-F0 AL2 6120182 OBO BETTERMANN ELECTRICAL SOCKET 0°, DOUBLE-STD-F0 AL2 provides earthing pin connectivity for standard electrical distribution setups. Double socket configurations of this design maximize connection density in cable trunking and service poles.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Earthing pin
- With signal lamp (EF000198): No
- Number of modules (module system) (EF009573): 0
- Number of socket outlets switchable (EF008814): 0
- Connection type (EF000124): Screwless terminal
- With hinged lid (EF000117): No
- With enhanced contact protection (EF000389): Yes
- Label space/information surface (EF001035): No
- Colour (EF000007): Aluminium
- Transparent (EF006243): No
- Lockable (EF000113): No
- Eject-mechanism (EF001051): No
- Insulated mounting (EF001588): No
- With function lighting (EF008861): No
- With orientation lighting (EF008862): No
- Over voltage protection (EF001332): No
More info
▲| Approvals | VDE |
|---|---|
| Closable | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3729 kg CO2e / 1 Piece |
| Coding | no |
| Colour | Aluminium painted |
| Connection type | Screwless terminal |
| Cover | Central plate |
| Depth | 39 mm |
| Dimension | 250V, 10/16A |
| Ejection mechanism | no |
| Error current protection | no |
| Fastening type | Lock |
| For more difficult conditions (according to VDE) | no |
| Halogen-free | yes |
| Height | 45 mm |
| Hinged cover | no |
| increased touch protection | yes |
| Insulated installation | no |
| Labelling panel | no |
| Material | Polycarbonate |
| Mounting type | Device installation duct |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
|---|---|
| Number of poles | 2 |
| Number of units | 2 |
| Operating temperature, max. | 40 °C |
| Operating temperature, min. | -5 °C |
| Printed label/coding | Without printing |
| Protection rating | Other |
| Rotated central insert | no |
| Socket angle | 0° |
| Socket version | NF |
| Special power supply | Without special power supply |
| Surface version | Matt |
| Surge protection | no |
| Transparent | no |
| Version for | Double 0° |
| Warning light | no |
| Width | 90 mm |
| With fine-wire fuse | no |
| With functional lighting | no |
| With on/off switch | no |
| With orientation lighting | no |
