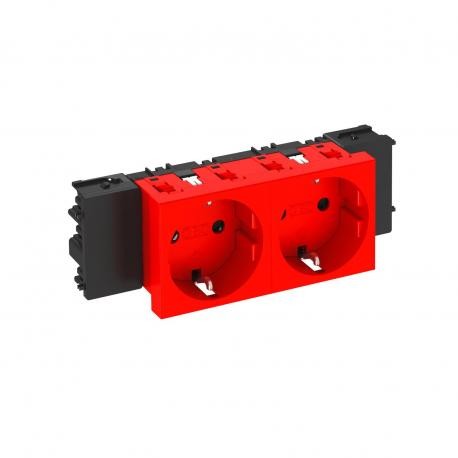

OBO BETTERMANN STD-D0C SRO2 STD-D0C SRO2 6120368 OBO BETTERMANN ELECTRICAL OUTLET 0º, DOUBLE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

STD-D0C SRO2 6120368 OBO BETTERMANN ELECTRICAL OUTLET 0º, DOUBLE

STD-D0C SRO2

6120368

OBO BETTERMANN

1 Pcs.

ELECTRICAL OUTLET 0º, DOUBLE Electrical outlet 0°, double grounding, Connect 45 250V, 10/16A red signal 3001 Polycarbonate, PC Socket 0°, Connect 45, protective contact, double. Protective contact socket with connection to side, Double 0°, with increased touch protection, with screwless terminals, 2-pin, 16 A, 250 V~, with connection terminals to IEC 60884-1, suitable for the installation in Rapid 45 device installation trunking systems. For installation in Rapid 45 trunking, device installation trunking, service poles, underfloor systems and desk boxes.

Automation > Socket outlet
EGS device systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A double electrical outlet by Obo Bettermann, designated as STD-D0C SRO2, delivers organized power distribution within specialized control panels and cable routing systems. Industrial color-coded outlets help technicians rapidly identify dedicated circuits or emergency power sources. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Socket outlet CEE 7/3 (type F)
  • With signal lamp (EF000198): No
  • Number of modules (module system) (EF009573): 0
  • Number of socket outlets switchable (EF008814): 0
  • Connection type (EF000124): Screwless terminal
  • With hinged lid (EF000117): No
  • With enhanced contact protection (EF000389): Yes
  • Label space/information surface (EF001035): No
  • Colour (EF000007): Red
  • RAL-number (similar) (EF003882): 3001
  • Transparent (EF006243): No
  • Lockable (EF000113): No
  • Eject-mechanism (EF001051): No
  • Insulated mounting (EF001588): No
  • With function lighting (EF008861): No
  • With orientation lighting (EF008862): No

More info

▲
Closableno
CO2 Footprint (GWP) Cradle-to-Gate0,5221 kg CO2e / 1 Piece
Codingno
ColourSignal red; RAL 3001
Connection typeScrewless terminal
CoverCentral plate
Depth42 mm
Dimension250V, 10/16A
Ejection mechanismno
Error current protectionno
Fastening typeLock
For more difficult conditions (according to VDE)no
Halogen-freeyes
Height90 mm
Hinged coverno
increased touch protectionyes
Insulated installationno
Labelling panelno
MaterialPolycarbonate
Mounting typeDevice installation duct
Nominal current16 A
Nominal voltage250 V
Number of poles2
Number of units2
Operating temperature, max.40 °C
Operating temperature, min.-5 °C
Power reserveno
Printed label/codingWithout printing
Protection ratingOther
Rotated central insertno
Socket angle0°
Socket versionProtective contact
Special power supplyWithout special power supply
Surface versionMatt
Surge protectionno
Transparentno
Version forDouble 0°
Warning lightno
Width131 mm
With fine-wire fuseno
With functional lightingno
With on/off switchno
With orientation lightingno
