STD-D0C RW3 6120382 OBO BETTERMANN ELECTRICAL SOCKET 0°, TRIPLE. CONNECTION TO THE EARTH, CONNECT 46. 250V, ..
STD-D0C RW3
6120382
OBO BETTERMANN
1 Pcs.
Automation > Socket outlet
EGS device systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

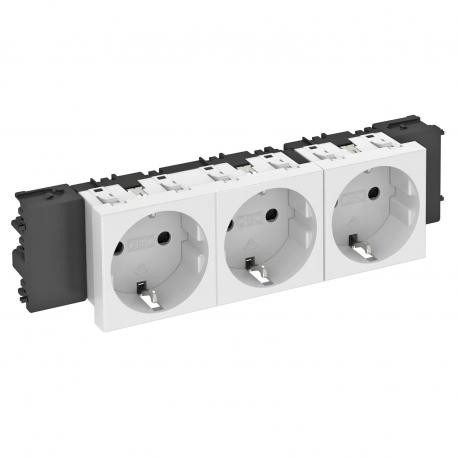

The STD-D0C RW3 6120382 OBO BETTERMANN ELECTRICAL SOCKET 0°, TRIPLE. CONNECTION TO THE EARTH, CONNECT 46. 250V, .. is a triple electrical socket unit designed for surface or duct mounting in professional office and industrial spaces. Triple-gang socket assemblies provide consolidated power distribution options where multiple devices must be powered simultaneously from a single location. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Socket outlet CEE 7/3 (type F)
- With signal lamp (EF000198): No
- Number of modules (module system) (EF009573): 0
- Number of socket outlets switchable (EF008814): 0
- Connection type (EF000124): Screwless terminal
- With hinged lid (EF000117): No
- With enhanced contact protection (EF000389): Yes
- Label space/information surface (EF001035): No
- Colour (EF000007): White
- RAL-number (similar) (EF003882): 9010
- Transparent (EF006243): No
- Lockable (EF000113): No
- Eject-mechanism (EF001051): No
- Insulated mounting (EF001588): No
- With function lighting (EF008861): No
- With orientation lighting (EF008862): No
More info
▲| Closable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6979 kg CO2e / 1 Piece |
| Coding | no |
| Colour | Pure white; RAL 9010 |
| Connection type | Screwless terminal |
| Cover | Central plate |
| Depth | 42 mm |
| Dimension | 250V, 10/16A |
| Ejection mechanism | no |
| Error current protection | no |
| Fastening type | Lock |
| For more difficult conditions (according to VDE) | no |
| Halogen-free | yes |
| Height | 45 mm |
| Hinged cover | no |
| increased touch protection | yes |
| Insulated installation | no |
| Labelling panel | no |
| Material | Polycarbonate |
| Mounting type | Device installation duct |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Number of poles | 2 |
|---|---|
| Number of units | 3 |
| Operating temperature, max. | 40 °C |
| Operating temperature, min. | -5 °C |
| Power reserve | no |
| Printed label/coding | Without printing |
| Protection rating | Other |
| Rotated central insert | no |
| Socket angle | 0° |
| Socket version | Protective contact |
| Special power supply | Without special power supply |
| Surface version | Matt |
| Surge protection | no |
| Transparent | no |
| Version for | triple 0° |
| Warning light | no |
| Width | 176 mm |
| With fine-wire fuse | no |
| With functional lighting | no |
| With on/off switch | no |
| With orientation lighting | no |
