OBO BETTERMANN STA BKRS 500 FT STA BKRS 500 FT 6044551 OBO BETTERMANN SUPPORT SET. BKRS 500 FT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

STA BKRS 500 FT 6044551 OBO BETTERMANN SUPPORT SET. BKRS 500 FT

STA BKRS 500 FT

6044551

OBO BETTERMANN

1 Pcs.

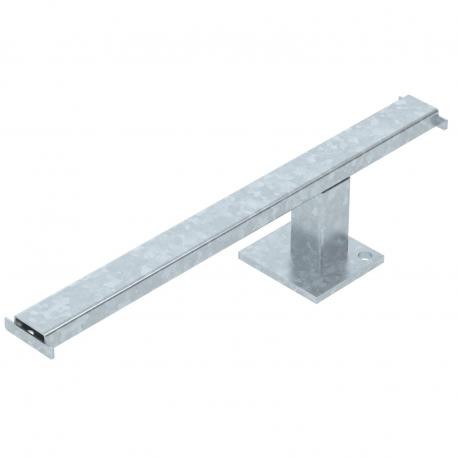

SUPPORT SET. BKRS 500 FT Stabilizer support, p/ passable tray, B=500, hot dip galvanized steel, DIN EN ISO 1461 BKRS FT support bracket. Support bracket, made of closed rectangular steel pipe, as a stand-off of the walkable cable tray system.

Cables > Bracket for cable support system
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann support set, designated by part number STA BKRS 500 FT, is utilized to anchor and secure heavy-duty cable management systems during electrical installation projects. This hardware supports systematic cable routing along floors or walls in commercial facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Length (EF001438): 100 mm
  • Width (EF000008): 492 mm
  • Height (EF000040): 108 mm
  • Suitable for cable support system width (EF008339): 500 mm
  • Material (EF002169): Steel
  • Surface protection (EF000139): Hot dip galvanized

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate3,7956 kg CO2e / 1 Piece
Colourzinc
DimensionB=500
Dimension B492 mm
Dimension b1123 mm
Dimension b2329 mm
Dimension D13 mm
for width max.500 mm
for width min.500
Height108 mm
Length100 mm
MaterialSteel
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceHot-dip galvanised
Tray fasteningScrew-on
Version forMiscellaneous
Version forSupport bracket
Width492 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
