OBO BETTERMANN STA BKRS 400 FT STA BKRS 400 FT 6044547 OBO BETTERMANN SUPPORT SET. BKRS 400 FT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

STA BKRS 400 FT 6044547 OBO BETTERMANN SUPPORT SET. BKRS 400 FT

STA BKRS 400 FT

6044547

OBO BETTERMANN

1 Pcs.

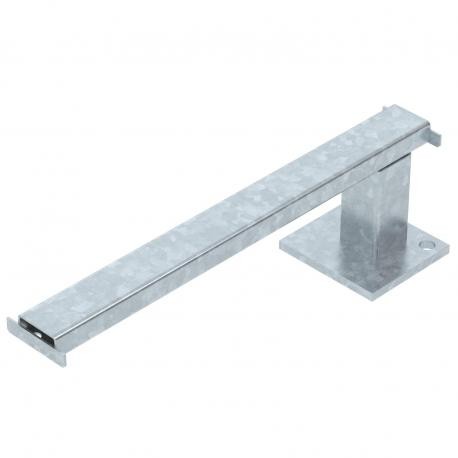

SUPPORT SET. BKRS 400 FT Stabilizer support, p/ passable tray, B=400, hot dip galvanized steel, DIN EN ISO 1461 BKRS FT support bracket. Support bracket, made of closed rectangular steel pipe, as a stand-off of the walkable cable tray system.

Cables > Bracket for cable support system
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate3,4808 kg CO2e / 1 Piece
Colourzinc
DimensionB=400
Dimension B392 mm
Dimension b123 mm
Dimension b2329 mm
Dimension D13 mm
for width max.400 mm
for width min.400
Height108 mm
Length100 mm
MaterialSteel
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceHot-dip galvanised
Tray fasteningScrew-on
Version forMiscellaneous
Version forSupport bracket
Width392 mm

ETIM for 6044547 Cable tray, ladder and wire basket systems (EC000022)
Feature Name Feature Value
Length (EF001438) 100 mm
Width (EF000008) 392 mm
Height (EF000040) 108 mm
Suitable for cable support system width (EF008339) 400 mm
Model (EF000010) Other
Material (EF002169) Steel
Surface protection (EF000139) Hot dip galvanized

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
