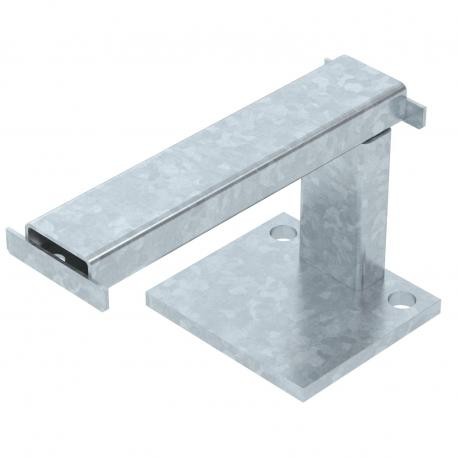

OBO BETTERMANN STA BKRS 200 FT STA BKRS 200 FT 6044543 OBO BETTERMANN SUPPORT SET. BKRS 200 FT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

STA BKRS 200 FT 6044543 OBO BETTERMANN SUPPORT SET. BKRS 200 FT

STA BKRS 200 FT

6044543

OBO BETTERMANN

1 Pcs.

SUPPORT SET. BKRS 200 FT Stabilizer support, p/ passable tray, B=200, hot dip galvanized steel, DIN EN ISO 1461 BKRS FT support bracket. Support bracket, made of closed rectangular steel pipe, as a stand-off of the walkable cable tray system.

Cables > Bracket for cable support system
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann support set, part number STA BKRS 200 FT, provides essential hardware and structural elements for mounting cable trays in commercial and industrial electrical layouts. These sets ensure alignment and reliable load handling across structured cabling systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Length (EF001438): 100 mm
  • Width (EF000008): 192 mm
  • Height (EF000040): 108 mm
  • Suitable for cable support system width (EF008339): 200 mm
  • Material (EF002169): Steel
  • Surface protection (EF000139): Hot dip galvanized

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate2,6293 kg CO2e / 1 Piece
Colourzinc
DimensionB=200
Dimension B192 mm
Dimension b111 mm
Dimension b2161 mm
Dimension D13 mm
for width max.200 mm
for width min.200
Height108 mm
Length100 mm
MaterialSteel
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceHot-dip galvanised
Tray fasteningScrew-on
Version forMiscellaneous
Version forSupport bracket
Width192 mm
