OBO BETTERMANN STA BKRS 100 FT STA BKRS 100 FT 6044541 OBO BETTERMANN SUPPORT SET. BKRS 100 FT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

STA BKRS 100 FT 6044541 OBO BETTERMANN SUPPORT SET. BKRS 100 FT

STA BKRS 100 FT

6044541

OBO BETTERMANN

1 Pcs.

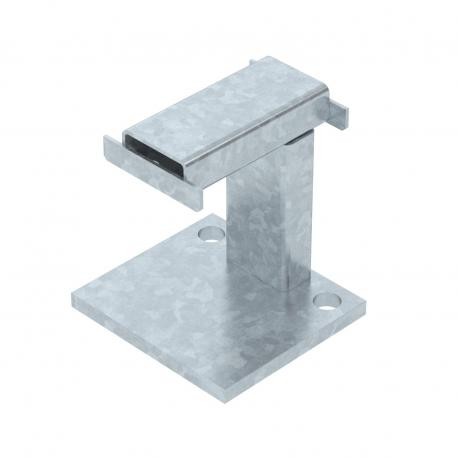

SUPPORT SET. BKRS 100 FT Stabilizer support, p/ passable tray, B=100, hot dip galvanized steel, DIN EN ISO 1461 BKRS FT support bracket. Support bracket, made of closed rectangular steel pipe, as a stand-off of the walkable cable tray system.

Cables > Bracket for cable support system
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann support set, identified by part number STA BKRS 100 FT, supplies the necessary structural components to anchor compact cable tray runs safely along floors or walls. This hardware ensures reliable mechanical fastening for organized electrical distribution networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Length (EF001438): 100 mm
  • Width (EF000008): 98 mm
  • Height (EF000040): 108 mm
  • Suitable for cable support system width (EF008339): 100 mm
  • Material (EF002169): Steel
  • Surface protection (EF000139): Hot dip galvanized

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate2,2811 kg CO2e / 1 Piece
Colourzinc
DimensionB=100
Dimension B92 mm
Dimension b111 mm
Dimension b261 mm
Dimension D13 mm
for width max.100 mm
for width min.100
Height108 mm
Length100 mm
MaterialSteel
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceHot-dip galvanised
Tray fasteningScrew-on
Version forMiscellaneous
Version forSupport bracket
Width98 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
