View larger
Images are for illustrative purposes only. Please refer to data sheet for details

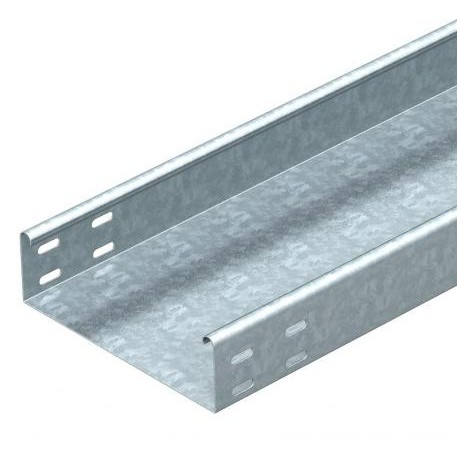

SKSU 660 FT 6064523 OBO BETTERMANN CABLE TRAY SKSU SKSU 660 FT
SKSU 660 FT
6064523
OBO BETTERMANN
3 m.
CABLE TRAY SKSU SKSU 660 FT
SKSU tray, without drill.,with aguj. bonding, 60x600x3000, hot dip galvanized steel, DIN EN ISO 1461
SKSU 660 FT 6064523 Cable tray SKSU 60 FS
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲SKS 60 = heavy-duty cable tray system, unperforated, with 60 mm side height.
| Type | SKSU 660 FT |
| Width mm | 600 |
| Plate thickness mm | 1,5 |
| Pack. m | 3 |
| Weight kg/100 m | 929,670 |
| Item No. | 6064523 |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 60 mm |
| Width (EF000008) | 600 mm |
| Material thickness (EF000386) | 1.5 mm |
| Length (EF001438) | 3000 mm |
| Useful cross section (EF005140) | 35800 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | No |
| Bottom perforation (EF004545) | No |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Type of connector (EF000141) | Screwed |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
| Weight (EF000167) | 9.3 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 2600 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 1900 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 1100 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 550 |
