View larger
Images are for illustrative purposes only. Please refer to data sheet for details

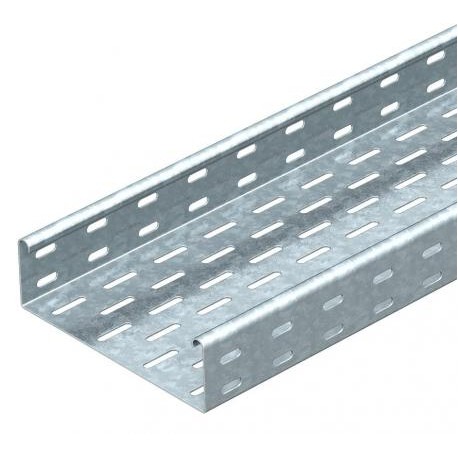

SKS 610 FS 6056105 OBO BETTERMANN CABLE TRAY SKS SKS 610 FS
SKS 610 FS
6056105
OBO BETTERMANN
3 m.
CABLE TRAY SKS SKS 610 FS
SKS SKS 610 FS cable tray, perforated 60x100x3000 Steel, St, strip galvanized, DIN EN 10346
SKS 610 FS 6056105 Cable tray SKS 60 FS
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲The cable tray, type SKS, should also be used for function maintenance. For additional data, please refer to BSS fire protection systems.
| Type | SKS 610 FS |
| Width mm | 100 |
| Plate thickness mm | 1,5 |
| Pack. m | 3 |
| Weight kg/100 m | 239,400 |
| Item No. | 6056105 |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 60 mm |
| Width (EF000008) | 100 mm |
| Material thickness (EF000386) | 1.5 mm |
| Length (EF001438) | 3000 mm |
| Useful cross section (EF005140) | 5800 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | Yes |
| Bottom perforation (EF004545) | Yes |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler included |
| Type of connector (EF000141) | Screwed |
| Suitable for circuit integrity (EF007806) | Yes |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Weight (EF000167) | 2.39 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 2650 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 1800 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 1150 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 500 |
