View larger
Images are for illustrative purposes only. Please refer to data sheet for details

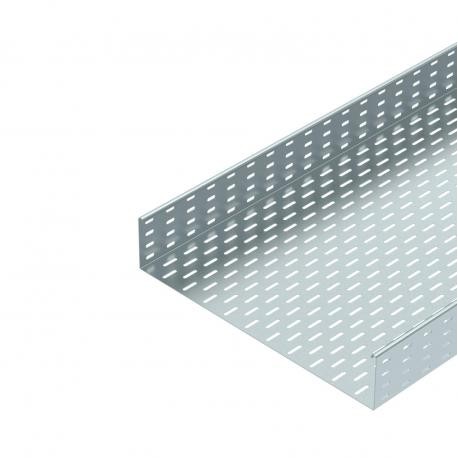

SKS 155 FS 6061559 OBO BETTERMANN CABLE TRAY SKS SKS 155 FS
SKS 155 FS
6061559
OBO BETTERMANN
3 m.
CABLE TRAY SKS SKS 155 FS
SKS cable tray, perforated, with joint set, 110x550x3000, galvanized steel in band, DIN EN 10346
SKS 155 FS 6061559 Cable tray SKS 110 FS
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲FS version includes connector, type RLVL 110.
| Type | SKS 155 FS |
| Width mm | 550 |
| Plate thickness mm | 1,5 |
| Pack. m | 3 |
| Weight kg/100 m | 830,000 |
| Item No. | 6061559 |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 110 mm |
| Width (EF000008) | 550 mm |
| Material thickness (EF000386) | 1.5 mm |
| Length (EF001438) | 3000 mm |
| Useful cross section (EF005140) | 60300 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | Yes |
| Bottom perforation (EF004545) | Yes |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler included |
| Type of connector (EF000141) | Screwed |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Weight (EF000167) | 8.3 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 3000 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 2400 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 1760 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 1200 |
| Safe working load according to IEC 61537 with support spacing 4.0 m (EF017268) | 800 |
